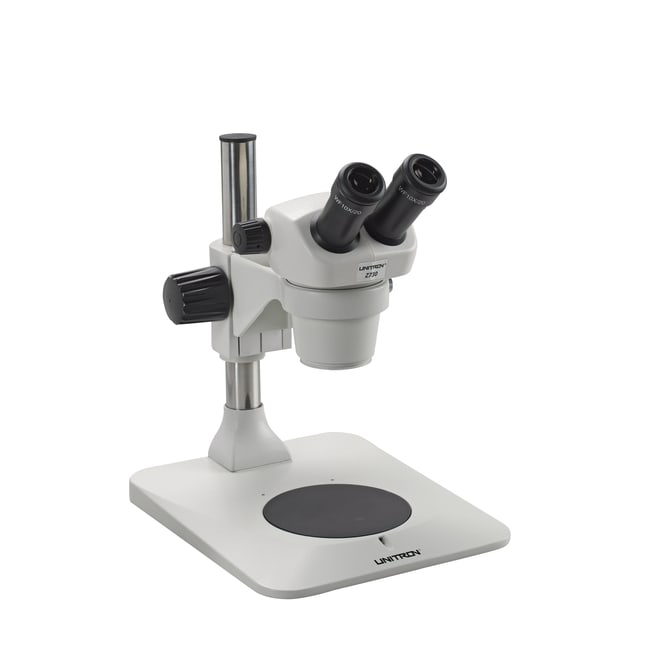

ACCU-SCOPE™ Z730 Binocular Zoom Stereo Microscope on Pole Stand

The UNITRON™ Z730 model 13204 features a binocular viewing head, 0.7x to 3.0x zoom range, inclined at 45°, 97 mm working distance, interpupillary distance adjustable from 52 to 75 mm, WF10x focusing eyepieces, 20 mm field of view, pole stand with rack and pinion focusing arm, and 125 mm black and white stage plate.

Supplier:  ACCU-SCOPE™ 13204

Catalog No. 01-189-271

Description

• Available with binocular viewing body with eyetubes inclined at 45°, or trinocular viewing body with eyetubes inclined at 45°
• Widefield 10x/20 mm focusing eyepieces
• 0.7x to 3.0x zoom magnification range
• 4.3:1 Zoom ratio
• Magnification range 7x to 30x (with 10x eyepieces)
• Interpupillary distance adjustment 52 mm to 75 mm
• 97 mm working distance
• Pole stand with 12 in. vertical post. Adjustable rack and pinion focus mount provides users with maximum flexibility for looking at large size samples
• Airtight and anti-mold design
• Note: Excelis™ HDS and Excelis™ HDS Lite cameras are not recommended for use with the Z730 series microscopes

Specifications

• Magnification Power: 7X to 30X
• Head Style: Binocular, 45° Inclined
• Eyepiece: WF 10X/20 mm

• Objective Types: Zoom Stereo
• Lighting Type: None
