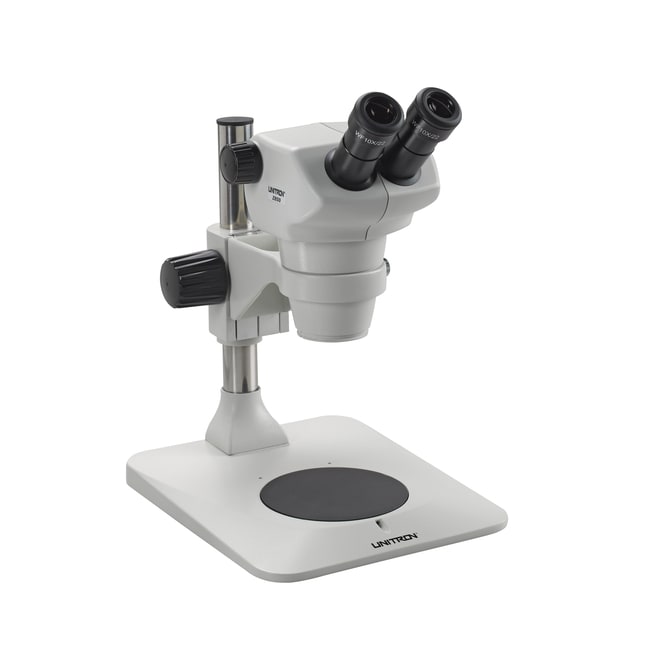

ACCU-SCOPE™ Z850 Series Binocular Zoom Stereo Microscope on Pole Stand

The UNITRON™Z850 model 13104 features a binocular head with a pole stand, best-in-class 8x to 50x magnification range with click-stops at 1x, 2x, 3x, 4x and 5x to ensure quick and consistent measurement results, 115 mm working distance allows easy access to specimens.

Supplier:  ACCU-SCOPE™ 13104

Catalog No. 01-189-295

Description

• Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle
• Fixed glass lens shield
• Widefield 10x/22 mm focusing eyepieces
• 0.8x to 5.0x zoom magnification range
• 6.3:1 zoom ratio
• Magnification range 8x to 50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x
• Interpupillary distance adjustment: 52 mm to 75 mm
• Field of view: 27.5 mm to 4.4 mm
• 115 mm working distance
• Pole stand with 12 in. (305 mm) vertical post, adjustable rack and pinion focus mount provides users with maximum flexibility for looking at large size samples
• 125 mm black and white stage plate
• Airtight and anti-mold design
• Note: Excelis™ HDS and Excelis™ HDS Lite cameras are not recommended for use with the Z850 series microscopes

Specifications

• Magnification Power: 8X to 50X
• Head Style: Binocular, 45° Inclined
• Eyepiece: WF 10X/22 mm

• Objective Types: Zoom Stereo
• Lighting Type: None
