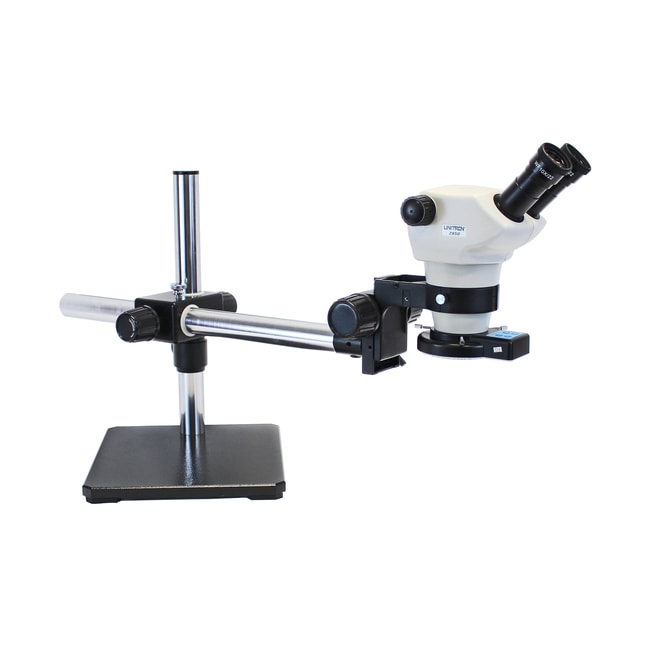

ACCU-SCOPE™ Z850 Series Binocular Zoom Stereo Microscope with Quad LED Ring Light on Boom Stand

Catalog No. 01-189-293

Supplier: ACCU-SCOPE™ 131051

Description

The UNITRON™Z850 series model 13105-1 features a binocular head with a boom stand, 0.5x aux objective, quad LED ring light best-in-class 8x to 50x magnification range with click-stops at 1x, 2x, 3x, 4x and 5x to ensure quick and consistent measurement results.

• Binocular viewing head with 45° viewing angle
• Widefield 10x/22 mm focusing eyepiece.
• 22 mm FOV
• 0.8x to 5.0x zoom magnification range
• 6.3:1 zoom ratio
• Magnification range 4x to 25x (with 10x eyepieces and included 0.5x auxiliary objective), with click stops at 1x, 2x, 3x, 4x and 5x
• Interpupillary distance adjustment 52 mm to 75 mm
• Field of view 55 mm to 8.8 mm
• 211 mm working distance
• Includes quadrant LED140 ring light with built-in intensity control
• Boom stand with Delrin™ insert on focus block for smooth, precise movement. Bonder arm (E-Arm)
• Airtight and anti-mold design

Specifications

• Magnification Power: 4X to 25X
• Objective Types: Zoom Stereo
• Head Style: Binocular, 45° Inclined
• Lighting Type: LED
• Eyepiece: WF 10X/22 mm
