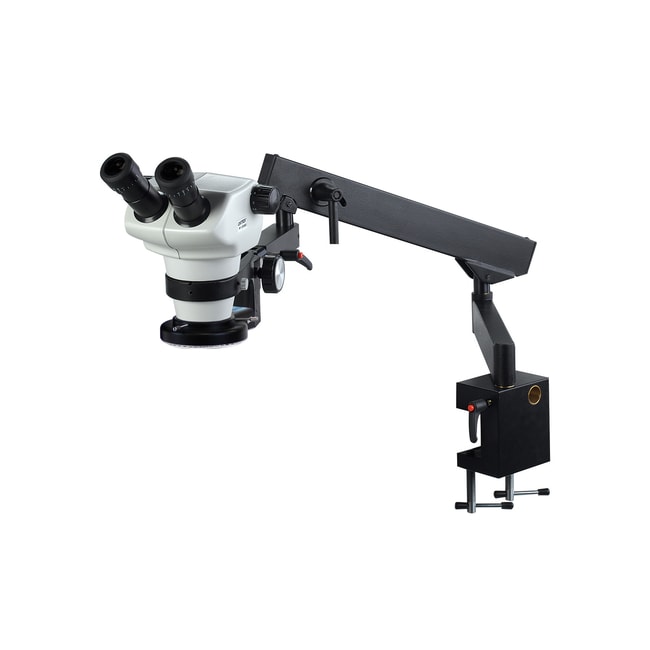

ACCU-SCOPE™ Z850 Series Binocular Zoom Stereo Microscope with Quad LED Ring Light on Flex Arm Stand
SDP

Catalog No. 01189287 Shop All ACCU-SCOPE Products
Change view
Click to view available options
Head Style:
Binocular, 45° Inclined
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Head Style
01-189-287 Binocular, 45° Inclined
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 01-189-287 Supplier ACCU-SCOPE™ Supplier No. 131071
Only null left
Add to Cart
Add to Cart

Description

The UNITRON™Z850 series 13107-1 features a binocular head with a articulating arm (Flex-Arm) stand, 0.5x aux objective, LED140 ring light, best-in-class 8x to 50x magnification range with click-stops at 1x, 2x, 3x, 4x and 5x to ensure quick and consistent measurement results.

  • Binocular viewing head with 45° viewing angle
  • Widefield 10x/22 mm focusing eyepiece.
  • 22 mm FOV
  • 0.8x to 5.0x zoom magnification range
  • 6.3:1 zoom ratio
  • Magnification range 4x to 25x (with 10x eyepieces and included 0.5x auxiliary objective), with click stops at 1x, 2x, 3x, 4x and 5x
  • Interpupillary distance adjustment 52 mm to 75 mm
  • Field of view 55 mm to 8.8 mm
  • 211 mm working distance
  • Includes quadrant LED140 ring light with built-in intensity control
  • Articulating arm with lockable 14.5 in. vertical motion range and 3 ft. scannable range
  • Horizontal or vertical c-claMP mount with Bonder Arm.
  • Airtight and anti-mold design

Specifications

Magnification Power 8X to 50X
Objective Types Zoom Stereo
Head Style Binocular, 45° Inclined
Lighting Type LED
Eyepiece WF 10X/22 mm
