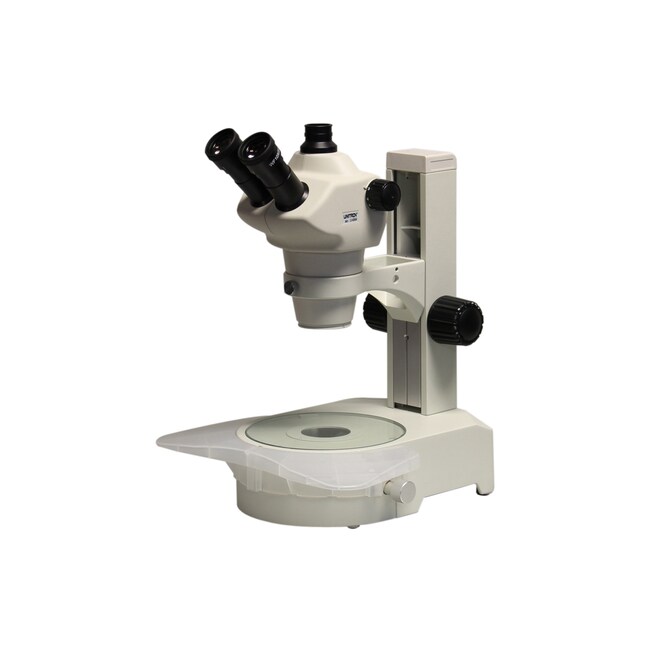

ACCU-SCOPE™ Z850 Series Trinocular Zoom Stereo Microscope on Diascopic Stand

Catalog No.	Head Style
01-189-274	Trinocular, 45° Inclined

Catalog No. 01-189-274

Supplier: ACCU-SCOPE™ 13140

Description

The UNITRON™ Z730 model 13140 features a trinocular head with a diascopic/embryo transfer stand, best-in-class 8x to 50x magnification range with click-stops at 1x, 2x, 3x, 4x and 5x to ensure quick and consistent measurement results, and 115 mm working distance allows easy access to specimens.

• Available with binocular viewing head with 45° viewing angle, or trinocular viewing head with 45° viewing angle
• Fixed glass lens shield
• Widefield 10x/22 mm focusing eyepieces
• 0.8x to 5.0x zoom magnification range
• 6.3:1 Zoom ratio
• Magnification range 8x to 50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x
• Interpupillary distance adjustment: 52 mm to 75 mm
• Field of view: 27.5 mm to 4.4 mm
• 115 mm working distance
• Cast aluminium alloy LED diascopic stand.
• Universal power supply
• Airtight and anti-mold design
• Note: Excelis™ HDS and Excelis™ HDS Lite cameras are not recommended for use with the Z850 series microscopes.

Specifications

• Voltage: 110/240 V
• Magnification Power: 8X to 50X
• Objective Types: Zoom Stereo
• Head Style: Trinocular, 45° Inclined
• Lighting Type: LED
• Eyepiece: WF 10X/22 mm
