Funnels

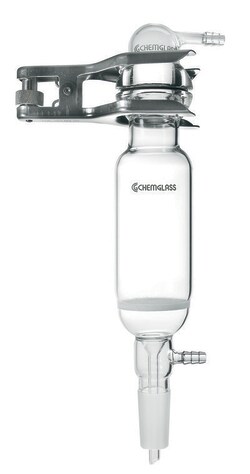

Chemglass Life Sciences 1000mL Filter Funnel, Pressure, Coarse Frit, #50 O-Ring Joint, 90 O.D.
1000mL Filter Funnel, Pressure, Coarse Frit, #50 O-Ring Joint, 90 O.D.. For positive pressure filtration of materials up to 15 psi. Connection between the funnel and adapter is made by an o-ring joint which permits a larger, grease free opening for sample retrieval. The 24/40 lower inner standard taper joint has an outlet for connection to a vacuum source. Complete item consists of a filter funnel, top inlet adapter, Viton o-ring and a CG-150 stainless steel pinchclamp.
Chemglass Life Sciences 2mL Filter Funnel, Buchner, Fine Frit
2mL Filter Funnel, Buchner, Fine Frit. Funnel has a sealed-in glass fritted disc of the listed porosity. Useful wherever filter paper or membranes cannot withstand the chemical attack of the filtrate. Constructed with heavy wall stems and the top of the funnel is beaded for additional strength. Not recommended for use where pressure would exceed 15 psi.
Chemglass Life Sciences 15mL Filter Funnel, Buchner, 24/40 Lower Vacuum Assembly, Fine Frit
15mL Filter Funnel, Buchner, 24/40 Lower Vacuum Assembly, Fine Frit. Buchner style filter funnel having a lower standard taper inner joint and serrated tubulation for connection to a vacuum source. Disc diameters and height above the disc are the same as CG-1402.
Chemglass Life Sciences 15mL Filter Funnel, Buchner, 14/20 Lower Vacuum Assembly, Fine Frit
15mL Filter Funnel, Buchner, 14/20 Lower Vacuum Assembly, Fine Frit. Buchner style filter funnel having a lower standard taper inner joint and serrated tubulation for connection to a vacuum source. Disc diameters and height above the disc are the same as CG-1402.

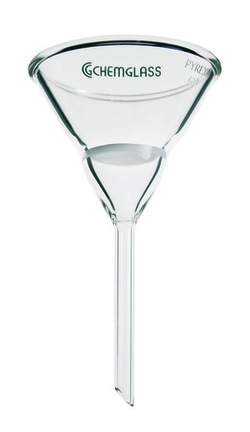

Chemglass Life Sciences Filter Funnel, Hirsh, 50mm Diameter Funnel Top, 20mm Coarse Frit
Filter Funnel, Hirsh, 50mm Diameter Funnel Top, 20mm Coarse Frit. Used in applications where it is necessary to wash and re-dissolve the precipitate with chemicals that would attack standard filter paper. The 60º angle on the funnel permits removal of precipitates.
Chemglass Life Sciences Buchner Funnel, Table Top, Polyethylene, Perforated, 24in ID, Removable Plate
Buchner Funnel, Table Top, Polyethylene, Perforated, 24in ID, Removable Plate. Filter large volumes quickly with a polyethylene table-top buchner funnel using your choice of filter plate. Removable hose barb connector accepts 12.7mm (1/2") I.D. tube and threads into 3/4" NPT bung on the funnel. Perforated filter plates are made of 4.8mm (3/16") thick HDPE with 4.8mm (3/16") perforations on 11mm (7/16") centers. Removable plate is for use in precious metals recovery; use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF).
Chemglass Life Sciences Buchner Funnel, Table Top, Polyethylene, Porous, 24in ID, Medium Porosity, Fixed Plate
Buchner Funnel, Table Top, Polyethylene, Porous, 24in ID, Medium Porosity, Fixed Plate. Filter large volumes quickly with a polyethylene table-top buchner funnel using your choice of filter plate. Removable hose barb connector accepts 12.7mm (1/2") I.D. tube and threads into 3/4" NPT bung on the funnel. Filter plates are supported by a multiple ring grid; HDPE, 6.4mm (1/4") thick, with a non-porous ring at the periphery of the plate which seals filter paper when used with porous filter plates. Medium porosity is 45-90 microns. Use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF).
Chemglass Life Sciences 60mL Filter Funnel, 14/20 Joint Size, 30mm OD Coarse Frit, Valve On Side Arm, Airfree, Schlenk
60mL Filter Funnel, 14/20 Joint Size, 30mm OD Coarse Frit, Valve On Side Arm, Airfree, Schlenk. Similar to AF-0542 but with the top having a standard taper inner joint instead of the outer joint. Available with a choice of a 2mm high vacuum glass stopcock having a Stainless Steel constant pressure retaining device or a 0-4mm Chem-Cap Airfree inlet valve.
Chemglass Life Sciences Filter Funnel, Disposable, 40mL, 10 Micron Polyethylene Frit, Flared Top, Shelf Pack
Filter Funnel, Disposable, 40mL, Polyethylene Frit, 500mg Diatomaceous Earth, Shelf Pack of 24
Ace Glass, Inc. 250mL separatory funnel with locking stopper
250ml separatory funnel with locking stopper that will not fall out during shaking or transport. Stopper can be secured in top joint via cap and O-ring for a leak-tight seal.
BURKLE INC Funnel, stainless steel, V2A, outer-Ø 11.81 in. (300 mm)
The rugged stainless steel filling funnel makes it easy to fill and transfer free-flowing powders, liquids and low-viscosity media. With an air vent on the discharge tube, it provides complete and unobstructed flow for efficient handling of a wide variety of materials.
The larger versions of the feed hopper are also equipped with a handle, which not only increases safety when handling larger fill quantities, but also improves usability in industrial environments.
