3500xL Genetic Analyzer for Resequencing & Fragment Analysis

Catalog No. 4440463
Encompass_Preferred
Change view
Click to view available options
Quantity:
1 system
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Quantity
44-404-63 1 system
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 44-404-63 Supplier LIFE TECHNOLOGIES Supplier No. 4440463

Specifications

Software Type Data Collection Software, Fragment Analysis
Starting Material DNA
Amperage 15 A
Capillary Length 50 cm, 36 cm

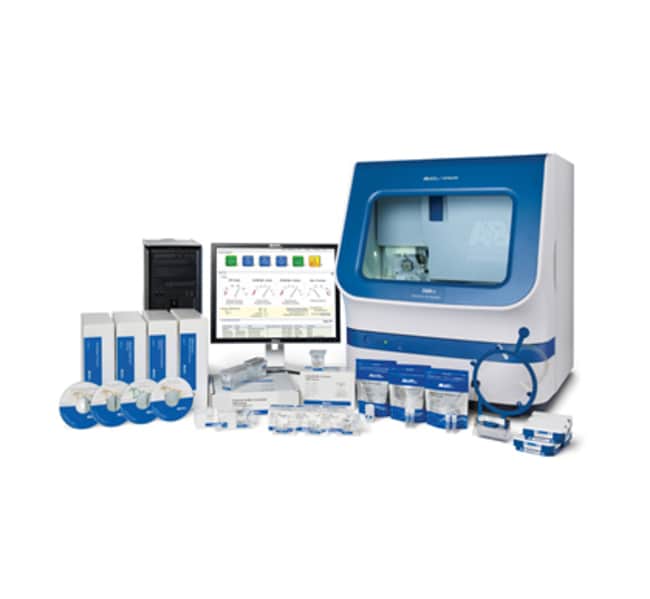

Content And Storage This package consists of the 24 capillary instrument, the 3500 Data Collection Software, a Dell Workstation and monitor as well as reagent kits for system qualification. This package also includes GeneMapper™ software for fragment analysis, and software for resequencing applications.
Electrical Requirements 100 V to 240 V, 50/60 HZ, 15 A
External Computer Hard Drive: 2x 500GB SATA 3.0 Gb/s and 8 MB Data Burst Cache, Memory: 16 GB (2x 8GB) 1600 MHz DDR3 Non-ECC. 4th Gen Intel Core I7 Processor- 3.1 GHz Turbo Processor, Operating System: Windows 7 SP1
Format 96-well Plate, 8-tube Strip
For Use With (Equipment) POP-6™ Polymer for 3500⁄3500xL Genetic Analyzers, 3500xl Genetic Analyzer Capillary Array (50 cm), POP-4™ Polymer for 3500⁄3500xL Genetic Analyzers, POP-7™ Polymer for 3500⁄3500xL Genetic Analyzers, 3500xl Genetic Analyzer Capillary Array (36 cm)
Height (English) Exterior 28.34 in.
Height (Metric) Exterior 72 cm
Length (English) Exterior 24.01 in.
Length (Metric) Exterior 61 cm
Max. Voltage Electrophoresis Voltage - Up to 20 kV
Number of Capillaries 24 Capillaries
Operating Environment Humidity: 20%-80% (non-condensing), Room temp: <2° fluctuation during runs, Temperature: 15°C-30°C
Operating System Windows 7 (Service Pack 1)
Polymer POP-4™, POP-6™, POP-7™
Polymer Consumption Replace at earliest of 7 days⁄960 samples⁄50 Injections (960-sample pouches), Replace at earliest of 7 days⁄384 samples⁄20 Injections (384-sample pouches)
Quantity 1 system
Read Length ≥850 bp using a 50 cm capillary and POP-7™
Software Compatibility Sequencing Analysis Software, Variant Reporter™ Software, GeneMapper™ Software
Throughput Up to 1272 samples per day (using run module HID36 POP7)
Warranty 1 Year Limited Warranty on Parts and Labor, Service Installation and Application Training Included
Weight 82 kg (approximately)
Width (English) Exterior 24.01 in.
Width (Metric) Exterior 61 cm
Show More Show Less

Frequently Asked Questions (FAQs)

Is the Plate Septa, 96 well (Cat. No. 4315933) compatible with 3500/3500xL Genetic Analyzers?

Yes, it is compatible with all versions of 3500/3500xL Genetic Analyzers as well as the 3500/3500xL Dx Genetic Analyzers, specifically in RUO mode.
Can I run SNaPshot applications, between 35 and 120 bp, on the SeqStudio Genetic Analyzer and the Applied Biosystems 3500 Genetic Analyzer with a 50 cm capillary array?

Both the SeqStudio Genetic Analyzer and the Applied Biosystems 3500 Genetic Analyzer have run modules specific for the SNaPshot application.

- For the 3500 Genetic Analyzer, the run module is "SNaPshot50_POP7" and it has a ~30 minute run time.
- For the SeqStudio Genetic Analyzer, the run module is "SNaPshot", the optimal size range is 40-120 bp, and it runs for ~25 minutes but the 35 bp fragment will be collected.
Is there a way to automatically upload my data into the Thermo Fisher Cloud app directly from the Applied Biosystems 3500 Genetic Analyzer, instead of using Data Collection Software?

If you are using the most recent version of Data Collection Software (v3.3), there is a way to automatically upload your data into the Thermo Fisher Cloud app from the instrument. When a run is complete, the data is stored in the results group folder that is specified in the plate record. The data will be automatically uploaded to your account if your User ID is the active ID. Results are saved in your account folders named by the plate and injections, not in the results group folder. Please go to page 43 of the 3500/3500xL Genetic Analyzer User Guide for Data Collection Software v3.3 (https://assets.thermofisher.com/TFS-Assets/LSG/manuals/100079380_3500v3_3RUO_UG.pdf) for details regarding the Thermo Fisher Cloud app.

If you are using Data Collection Software v3.1, you would have to manually upload your data into the Thermo Fisher Cloud app from your data folder on the computer.
