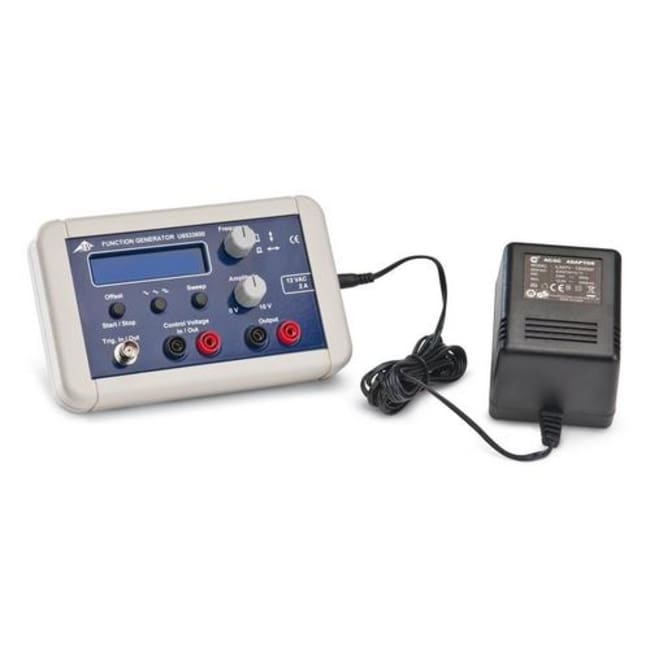

3B Scientific™ Power Function Generator
SDPSCI_ED

Catalog No. s08169 Shop All 3B Scientific Products
Change view
Click to view available options
Electrical Requirements:
115 V 50/60 Hz
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Electrical Requirements
S08169 115 V 50/60 Hz
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. S08169 Supplier 3B Scientific™ Supplier No. U8533600115
Only null left
Add to Cart
Add to Cart

Description

For use in simple harmonic oscillation, AC electricity and induction experiments.

  • Illuminated, digital display for frequency, signal form, offset and other parameters
  • Features external sweep function and power amplifier
  • Out-put protected against short-circuit induced voltages and spark discharges
  • With retractable feet and includes power supply
  • Dimensions: 17 x 10.5 x 4cm

Signals:

  • Frequency range: 0.001Hz to 100kHz
  • Signal forms: Sine, square, triangular
  • Offset: 0 to ±5V, adjustable in 0.1V steps

Out-put:

  • Output amplitude: 0 to 10V, continuously adjustable
  • Power output: 10w, permanent
  • Output current: 1A permanent, 2A max.

Sweep:

  • Sweep modes: External, continuous internal, individual internal
  • Frequency range: 1Hz to 100kHz
  • Stop/start frequency ratio: Max. 1000:1, e.g. 2Hz to 2kHz max.
  • Time range: 0.04s to 1000s
  • External sweep: Start via trigger pulse or application of 0 to 5V control voltage
  • Max. modulation frequency: 200Hz
  • Internal sweep: Start and stop via Start/Stop button
  • One trigger output per cycle plus proportional voltage

Specifications

Electrical Requirements 115 V 50/60 Hz
Product Type Power Function Generator; 115V 50/60 Hz
