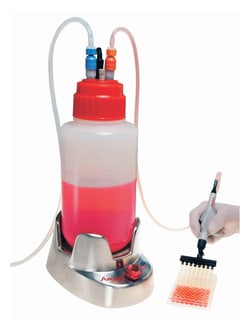

Cole-Parmer™ E-Vac Aspiration System

Self-contained aspiration system-vacuum pump built into the base!

Supplier:  Cole-Parmer™ 0439710

Catalog No. 10-987-031

Includes: E-Vac 310 system includes 4L polypropylene bottle, lid with quick-release couplings, level detection sensor cable and HandEvac hand operator

Description

• Keep clean-all components are autoclavable except the vacuum base
• Protect your vacuum pump-included filter prevents liquid aspiration into the pump
• Minimize down-time when collection bottle is full-additional bottles available
• Be safe-plastic bottles won't shatter if dropped
• Choose from model with a hose barb couplings cap or models with quick-release couplings cap and a collection bottle level sensor

The E-Vac aspiration system is designed to collect critical or dangerous liquids. Waste is collected in the bottle through vacuum, and pressure-sensitive button controls the right amount of vacuum for your application. All parts, except the stainless steel base containing the pump, are fully autoclavable. Two hydrophobic filters help prevent liquids from getting into the pump and pump housing in the event of an overflow.

The HandE-Vac hand operator, included with both systems options, is designed to fit the E-Vac systems or any vacuum device currently available on the market. Set vacuum by manual adjustment of the aperture control button. Ergonomic design allows for fatigue-free aspiration. The hand operator can also be used with Pasteur pipettes or multi-well plates and dishes, additional adapters required and sold separately.

Full bottles can be swapped out and autoclaved with minimum of effort and new bottles replaced within seconds. All parts, except the stainless steel base containing the pump, are fully autoclavable.

Certifications

CE approved, RoHS/WEEE compliant

Specifications

• Max. Vacuum: -250 to -650 mbar
• Includes: 4 L polypropylene bottle, lid with quick-release couplings, level detection sensor cable and HandE-Vac hand operator
• Electrical Requirements: 100/240 VAC 50/60 Hz
• Material: Glass
• Noise Level: 50 dB ± 5 dB at 1 m
• Flow Rate: 8 L/min.
• Pump Type: Oilless Diaphragm Pump

• Control: Analog dial
• Certifications/Compliance: CE approved, RoHS/WEEE compliant
• Description: E-Vac 310 Aspirating System- E-Vac base with 4L Polypropylene bottle and lid with quick release tubing connector and level detection sensor, 700mm tubing (EV331), 1800 mm tubing (EV332), Filter (EV015), HandEvac hand operator with single channel adapter (EV514)
• Model: EV310
• Plug Type: Universal
• Frequency: 50/60 Hz
• Voltage: 100/240 VAC
