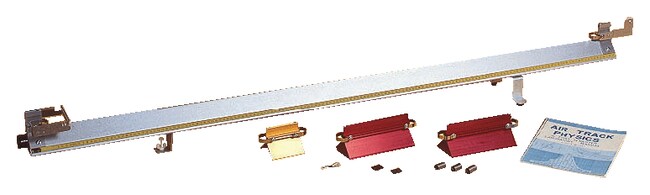

Basic Precision Air Track

Description

Includes

• Two 10.6 oz. (300g) and one 5.3 oz. (150g) gliders, all assembled and calibrated to their nominal mass
• End stops fitted with bumper springs (one end with rubber band glider launcher, the other with end pulley)
• Springs for harmonic motion experiments
• Magnets for damping and noncontact collisions
• Instruction manual

Linear air track offers quality and precision.

Sturdy, lightweight aluminum track provides durable and maintenance-free performance.

• For use without a support beam
• Hand-finished, anodized tracks
• Full-length metric tape set into the extrusion
• Guide groove for spark paper
• Use to study acceleration with constant force, harmonic motion, damping and noncontact collisions, and more

Specifications:

• Cross section is an isosceles triangle with a right angle at the apex
• Two air holes on each side measure 0.04 in. (0.09cm) in diameter with a 0.9 in. (2.4cm) separation
• Support: three point, a crossfoot and a leveling screw; nominal support separation of 39.4 in. (1m)
• End stops fitted with bumper springs (one end with rubber band glider launcher and the other with an end pulley)
• Overall length, 65.7 in. (1.67m); working length, 59 in. (1.5m)
• Wall thickness, 0.1 in. (3mm); base width, 3.7 in. (9.4cm)

Specifications

• Material: Aluminum
• Product Type: Air Track
• For Use With (Application): To study acceleration with constant force, harmonic motion, damping and noncontact collisions and more, for multiple student lab stations
• Quantity: 1 Ea.
• Length (English): 62.99 in.
• Length (Metric): 160 cm
• Includes: Two 10.6 oz. and one 5.3 oz. gliders, one Rubber band glider launcher, one end pulley, Stainless springs, magnets for damping and non contact collisions, instruction manual
