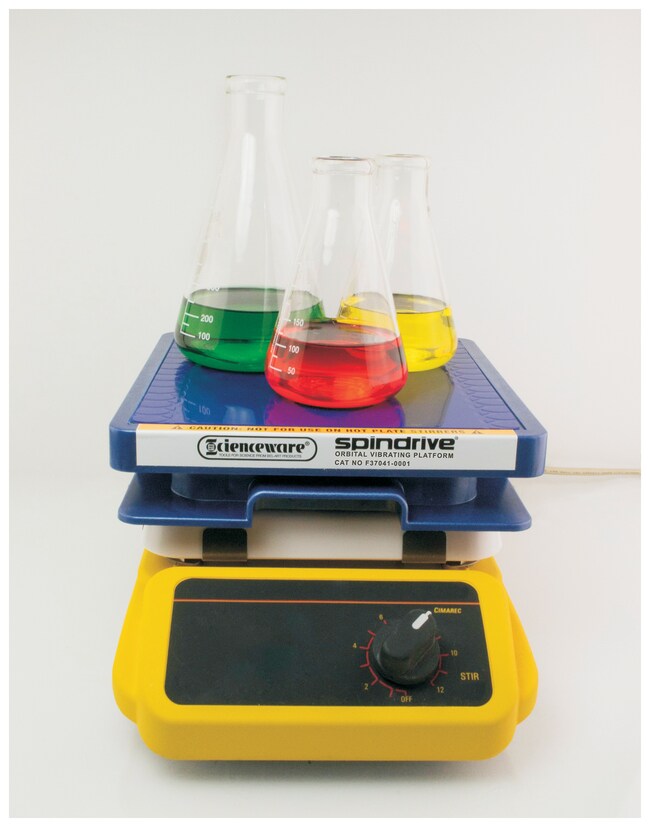

Bel-Art™ Spindrive™ Orbital Shaker Platform

Save the expense and eliminate the space requirements of another piece of lab equipment. Placed and centered on a magnetic stirrer, this platform operates as an orbital vibrator for plates, flasks or other vessels.

Supplier:  Bel-Art™ F370410001/EMD

Catalog No. S90154

Description

Vibrate and mix; rotating orbit diameter of 1.52mm

Vibration adjustment controlled by setting magnetic stirrer to desired speed

Platform protects operating mechanism from spills

Non-skid surface prevents containers from sliding

Base incorporates built-in hand holds for lifting and carrying

Supports up to 6.8kg (15lb)

L x W x H: 8.8 x 8.8 x 2.25 in. (225 x 225 x 53mm)

Weighs 2.2 lb. (1kg)

U.S. Patent 5,409,312

Specifications

• Orbit: 1.5 mm
• Speed Range: 0 to 300 rpm
• Product Type: Orbital Vibrating Platform
• Height (English): 2.1 in.
• Length (English): 8.9 in.
• Width (English): 8.9 in.
• Shipping Weight (English): 2.25 lb.
• Model: Spindrive

• Load Bearing Capacity (Metric): 6.8 kg
• Voltage: 0/1 V
• Dimensions (L x W x H): 8.9 x 8.9 x 2.1 in. (22.5 x 22.5 x 5.3 cm)
• Height (Metric): 5.3 cm
• Length (Metric): 22.5 cm
• Width (Metric): 22.5 cm
• Shipping Weight (Metric): 1 kg
