Eisco™ Capillary Tube Apparatus
SCI_ED

Catalog No. S27649 Shop All Eisco Products
Change view
Click to view available options
:
Capillary Tube Apparatus
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No.
S27649 Capillary Tube Apparatus
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. S27649 Supplier Eisco™ Supplier No. PH0202A
Only null left
Add to Cart
Add to Cart

Description

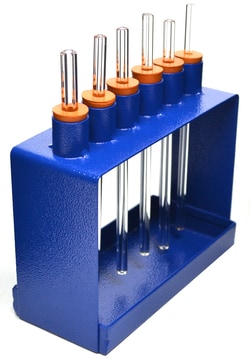

This Capillary Tubes Apparatus is perfect for demonstrating the relationship between capillary pressure and the bore diameter of the capillary tube

  • For demonstrating the relationship between capillary pressure and bore diameter of the capillary tube
  • Apparatus is comprised of a metal frame arrangement with a base trough, an upper part of the frame that supports six capillary tubes, six bore holes fitted with corks, and six capillary tubes
  • Metal Frame: 5.5 x 3 x 5.5 in.
  • Bottom Trough: 0.8 in. deep

Specifications

Product Type Capillary Tube Apparatus
Material Borosilicate Glass
For Use With (Application) Demonstrating The Relationship Between Capillary Pressure and Bore Diameter of The Capillary Tube
Diameter (Metric) 8 mm (Tube 1), 7 mm (Tube 2), 8 mm (Tube 3), 6 mm (Tube 4), 8 mm (Tube 5), and 5 mm (Tube 6)
Dimensions (L x W x H) Overall Apparatus: 3 x 5.5 x 7.5 in.
Diameter (Metric) Inner 4 mm (Tube 1), 2 mm (Tube 2), 3 mm (Tube 3), 1 mm (Tube 4), 2 mm (Tube 5), and 1 mm (Tube 6)
