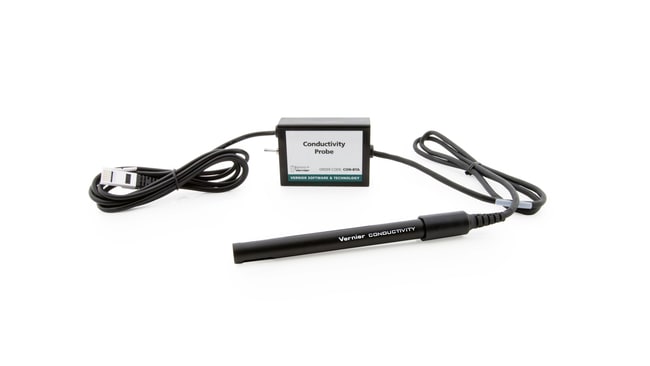

Vernier™ Conductivity Probe

Catalog No.	Temperature Range (Metric)
S16128ND	0°C to 80°C

Catalog No. S16128ND Supplier Vernier™ Supplier No. CONBTA

Description

Includes

Vernier Conductivity Probe, 90 mL bottle of 1000 μS/cm NaCl standard solution

Requires

Requires an interface and software, sold separately

The Conductivity Probe determines the ionic content of an aqueous solution by measuring its conductivity. This has many applications in chemistry, biology, and environmental science.

Range: Low Range: 0 to 200 μS/cm (0 to 100 mg/L TDS) Mid Range: 0 to 2000 μS/cm (0 to 1000 mg/L TDS) High Range: 0 to 20,000 μS/cm (0 to 10,000 mg/L TDS) Typical Resolution: Low Range: 0.1 μS/cm (0.05 mg/L TDS) Mid Range: 1 μS/cm (0.5 mg/L TDS) High Range 10 μS/cm (5 mg/L TDS) Accuracy using factory calibration: ±8% of full-scale reading for low range ±3% of full-scale reading for mid range ±4% of full-scale reading for high range Accuracy using custom calibration: ±2% of full-scale reading for each range Response Time: 98% of full-scale reading in 5 seconds, 100% of full-scale in 15 seconds Temperature Compensation: automatic from 5 to 35 °C Temperature Range (can be placed in): 0 to 80 °C Cell Constant: 1.0 cm-1 Description: ABS body, parallel carbon (graphite) electrodes Dimensions: 12 mm OD and 150 mm length

Warranty and Services

5-year limited warranty

Specifications

• Description: Parallel carbon (graphite) electrodes
• Grade: Middle School, High School, College
• Interface: Required
• Material: ABS Body
• Warranty: 5 Year Limited
• For Use With (Application): Chemistry, biology, and environmental science
• Accuracy: ±4% to ±8% of full-scale reading
• Range: 0 to 20,000 μS/cm
• Resolution: 0 to 10 μS/cm
• Response Time: 98% of full-scale reading in 5 seconds, 100% of full-scale in 15 seconds
• Temperature Range (Metric): 0°C to 80°C
• Dimensions (L x W): 12 mm OD and 150 mm length
• Length (Metric): 150 mm
