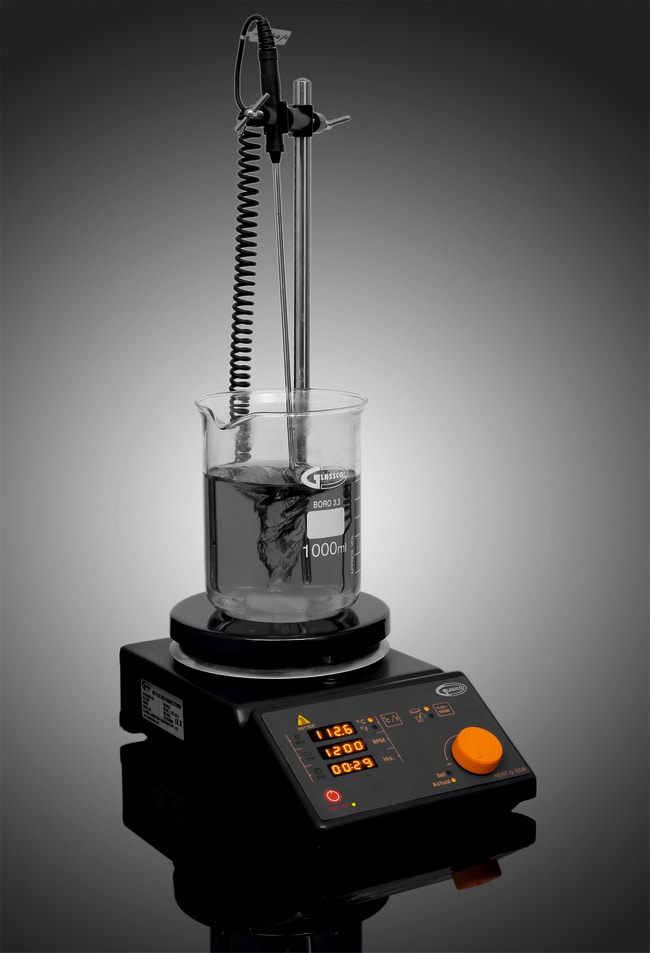

United Scientific Supplies Digital Hot Plate/Magnetic Stirrer
SDPSCI_ED

Catalog No. S43720 Shop All United Scientific Supplies, Inc Products
Change view
Click to view available options
Top Plate Material:
Ceramic
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Top Plate Material
S43720 Ceramic
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. S43720 Supplier United Scientific Supplies Supplier No. HPSD90002

Description

The Digital Hot Plate/Magnetic Stirrer features aluminum housing with a stainless steel, ceramic-coated 6 in. diameter heating plate that is scratch and chemical resistant.

  • Unit is thermally insulated to make the housing relatively cool to the touch during operation.
  • Designed with double PT sensors.
  • Features a digital temperature controller, RPM controller, and time controller (all with independent LED displays).
  • Master selector knob for temperature, stir speed, and time settings.
  • Built-in audible alarm at end of time cycle for safety and ease of unsupervised operation.
  • In the case of malfunction a visual error code is displayed for easy diagnosis and resolution.
  • Display can be toggled between hotplate and probe temperature.
  • Temperature can be displayed in °C or °F.
  • Hot top indicator for temperatures above 50°C, even when switched off.
  • Adjustable Safety Cutoff Range: 50° to 400°C
  • Maximum Stir Speed: 1500 RPM

Specifications

Description Built-in RS232 Port for Connection to a Computer
Top Plate Material Ceramic
Controller Type RPM, Temperature, and Time
Size 6 in. dia.
Temperature (Metric) 0°C to 350°C
Wattage 650 W
Electrical Requirements 115 V/60 Hz
For Use With (Equipment) Beakers/Flasks up to 2000 mL
Safety Features Thermally Insulated, Visual Error Code, Hot Top Indicator
Includes Stainless Steel Rod (12 x 400 mm), PT100 Sensor Probe, Magnetic Stirbar (6 x 35 mm), Boss Head Clamp
Plug Type US-Style
Max. Container Size 2 L
No. of Positions 1
Shape Round
Voltage 110 V
Certifications/Compliance None
Warranty 12 Months
Display Digital
