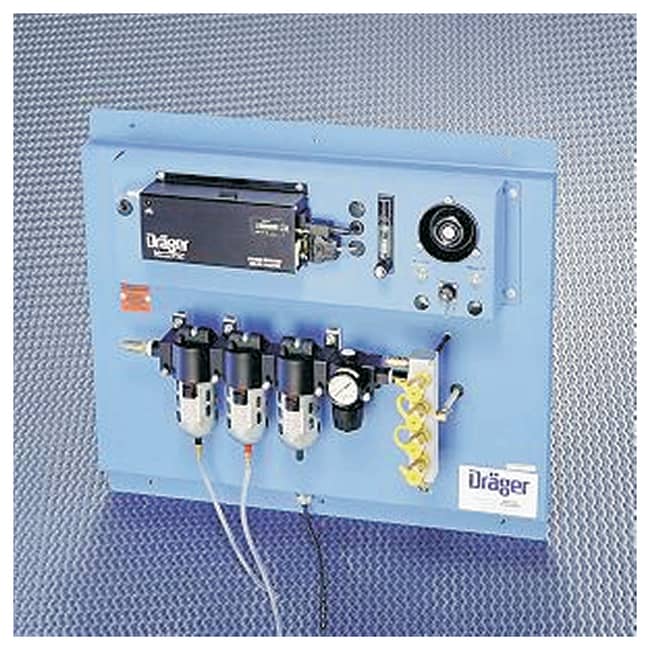

Dräger™ Filtration System for Fixed Air

Catalog No.
19-018703	Filtration System for Fixed Air

Catalog No. 19-018703 Supplier Dräger™ Supplier No. 4055356

Description

Provides Grade D breathing air to workers in hazardous or IDLH atmospheres

• Rugged pelican case or aluminum panel withstands the harshest environments
• Panel with no heavy metal components available for azide environments
• Auxiliary battery supply provides back-up in the case of power loss
• 50 CFM

Pressure Control:

• Pressure gauge locks to prevent accidental pressure change
• Pressure differential indicator on each filter serves as end of filter indicators

CO Monitoring:

• Continuous CO level display permits constant monitoring
• CO monitor has internal RFI/EMI filters built into the circuitry to eliminate radio interference

Alarms:

• Visual alarms indicate low battery, high CO levels and normal operation
• Audible alarm sounds at 120 dbA
• Remote alarm connection included

For use with up to 300 ft. of hose with Draeger SAR.

Compliance

NIOSH approved

Specifications

• Certifications/Compliance: NIOSH
• Connection Type: 0.5 in. NPT female
• Flow Rate: 50 cfm
• Filter Efficiency: 99.99% at 0.01μ
• Includes: Visual alarm, loud (120 dba) audible alarm, CO monitor with internal RFI/EMI filter, pressure relief valve, 4 Hansen brass sockets
• Model: 4055356
• Pressure: 50 to 150 psi
• Overall Width (English): 23 in.
• Overall Width (Metric): 58.4 cm
• Overall Height (English): 16.7 in.
• Overall Height (Metric): 42.5 cm
• Weight (English): 50 lb.
• Weight (Metric): 22.7 kg
• Electrical Requirements: 110 V
• Product Type: Fixed Air Filtration System
