Invitrogen™ E-Gel™ Power Snap Electrophoresis System, EX 1%, and E1-ClipTip™ Bluetooth™ Equalizer Pipette Package

Catalog No.	Quantity
A39486	1 package

Catalog No. A39486 Supplier Invitrogen™ Supplier No. A39486

Description

This package combines everything you need to streamline your DNA sample analysis workflow and increase productivity.

This package combines everything you need to streamline your DNA sample analysis workflow and increase productivity.

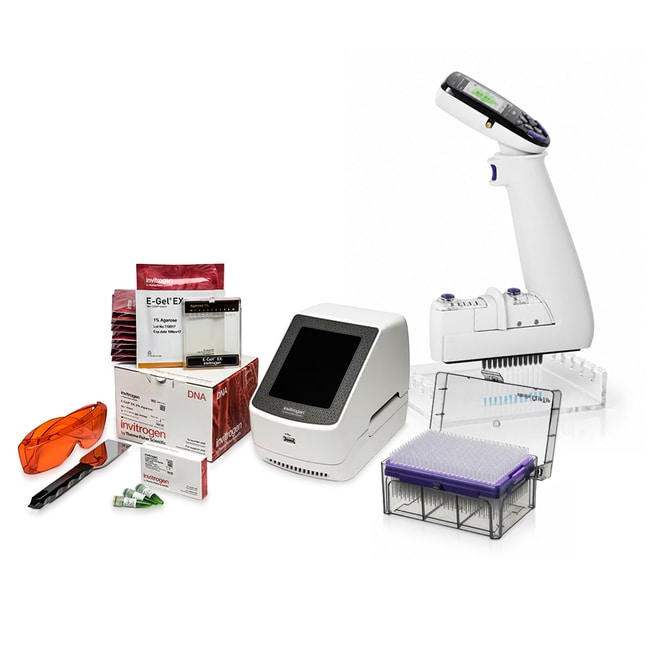

The kit package includes:

• E-Gel Power Snap Electrophoresis System (Cat. No. G8300)
• E1-ClipTip Bluetooth Electronic Adjustable Tip-Spacing Multichannel Equalizer Pipette (Cat. No. 4672040BT)
• 1% E-Gel EX Agarose Gels, 10 gels (Cat. No. G401001)
• E-Gel 1 Kb Plus Express DNA Ladder with E-Gel Sample Loading Buffer (1X) (Cat. No. 10488091)
• Gel opening knife (Cat. No. EI9010)
• ClipTip Filtered 384 Format Pipette Tips, 30 μL (Cat. No. 94420103)

E-Gel Power Snap Electrophoresis System

The all-in-one Invitrogen E-Gel Power Snap Electrophoresis System is designed for fast and convenient E-Gel agarose gel electrophoresis, from DNA sample loading to gel image. With dry precast E-Gel agarose gel technology, you can run DNA samples in as little as 10 minutes and observe sample separation in real time. It is the only benchtop system that seamlessly integrates DNA sample separation and gel imaging into one workflow.

Features of the E-Gel Power Snap Electrophoresis system include:

• Streamline electrophoresis and image capture with an all-in-one system
• Separate DNA in as little as 10 minutes with dry precast E-Gel agarose gels
• View and capture DNA samples in real time
• Designed for efficient and convenient benchtop use

E1-ClipTip Bluetooth Electronic Adjustable Tip-Spacing Multichannel Equalizer Pipette

Perform sample transfers between virtually any tube, rack, microplate, or horizontal gel box quickly and efficiently with the Thermo Scientific E1-ClipTip equalizer pipette. Adjustable tip spacing allows you to set the distance between tips by simply sliding the scale to expand or contract to accomodate the desired labware format. The My Pipette Creator app enables programming of the E1-ClipTip pipette from the comfort of your PC.

Specifications

• Content And Storage:

  • E-Gel Power Snap Electrophoresis System (Cat. No. G8300)
  • E1-ClipTip Bluetooth Electronic Adjustable-Tip-Spacing Multichannel Equalizer Pipette (Cat. No. 4672040BT)
  • 10 E-Gel EX Agarose Gels, 1% (Cat. No. G401001)
  • E-Gel 1 Kb Plus Express DNA Ladder with E-Gel Sample Loading Buffer (1X) (Cat. No. 10488091)
  • Gel opening knife (Cat. No. EI9010)
  • ClipTip Filtered 384 Format Pipette Tips (30 μL) (Cat. No. 94420103)

  Storage: E-Gel Agarose Gels should be stored strictly at room temperature.

• Product Line: E-Gel
• Type: Horizontal Gel Electrophoresis System
• Gel Percentage: 1%
• Gel Type: E-Gel
• Label or Dye: Proprietary Stain
• No. of Wells: 11
• Quantity: 1 package
• Shipping Condition: Room Temperature
• Well Design: Single Comb

Frequently Asked Questions (FAQs)

I am not seeing any current when I try to run my E-Gel EX agarose gels. Why is this?

Here are some common reasons why your gel is not running properly:

- Copper contacts in the base are damaged due to improper use. Make sure the copper contacts in the base are intact.
- An expired or defective gel cassette was used.
- The E-Gel EX cassette was not inserted properly into a base.
- An incorrect adaptor was used.

What is the special feature of E-Gel EX agarose gels?

E-Gel EX agarose gels separate DNA faster, offer enhanced sensitivity, and provide added flexibility. The stain within the EX gels is proprietary (not based on SYBR technology), though it has the same spectral properties as SYBR stains. The E-Gel EX gels have a sensitivity that is 5X greater than gels using ethidium bromide.

I have an E-Gel Simple Runner Electrophoresis Device in my lab, are the new 11-well and 22-well E-Gel agarose gels compatible with it?

Due to the differences in dimensions, the new E-Gel 11-well and 22-well agarose gel formats are not compatible with the E-Gel Simple Runner Electrophoresis Device.

Which DNA ladders do you recommend using with E-Gel EX agarose gels and E-Gel agarose gels with SYBR Safe stain?

To select the DNA ladder that yields the best resolution for your specific E-Gel, please refer to the table on page 45 of the E-Gel Power Snap Electrophoresis System user guide (https://assets.thermofisher.com/TFS-Assets/LSG/manuals/MAN0017050_egel_powersnapsystem_UG.pdf).

Can I use double comb E-Gel EX agarose gels or E-Gel agarose gels with SYBR Safe stain for RNA analysis?

E-Gel EX Double Comb agarose gels and E-Gel Double Comb agarose gels with SYBR Safe stain have not been tested for use in RNA applications. We recommend using E-Gel EX Single Comb agarose gels with 11 wells for RNA analysis.

Can I dispose of E-Gel EX agarose gels the same way as E-Gel agarose gels with SYBR Safe DNA Gel Stain?

No. Standard safety and hazardous waste disposal procedures should be followed when handling E-Gel EX agarose gels.

What is the difference between E-Gel agarose gels with SYBR Safe DNA Gel Stain and E-Gel EX agarose gels?

E-Gel EX agarose gels separate DNA faster, offer enhanced sensitivity, and provide added flexibility. The stain within the E-Gel EX agarose gels is SYBR Gold II which has similar spectral properties but increased sensitivity compared to SYBR Safe DNA Gel Stain. E-Gel EX agarose gels are especially suited for applications where high sensitivity is critical.

For Research Use Only. Not for use in diagnostic procedures.
