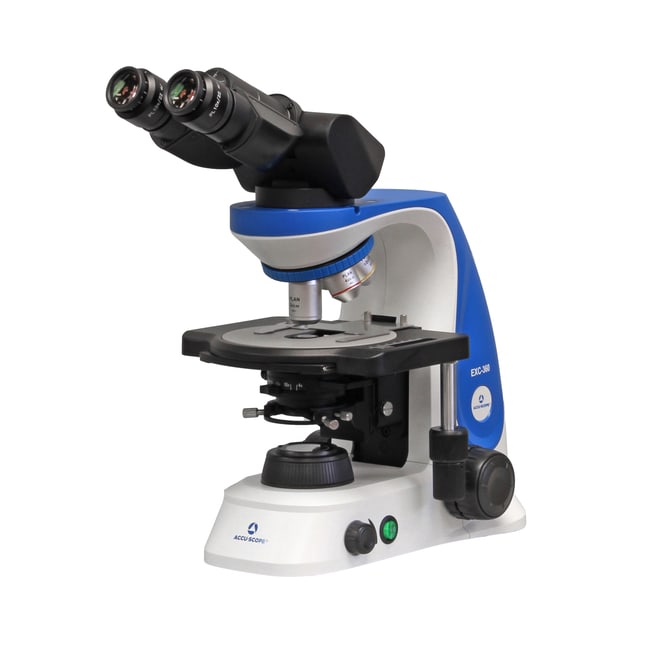

ACCU-SCOPE™ Ergo Binocular with Plan Achromat 2x, 4x, 10x, 20x Objectives with Diffusing Filter Slider

The new EXC-360 from ACCU-SCOPE delivers exceptional optical performance, versatility and durability for clinical, veterinary and education laboratory environments.

Supplier:  ACCU-SCOPE™ EXC360PATHBE

Catalog No. 01-000-969

Description

• Ergo tilting binocular viewing head (5° to 35°)
• Plan Achromat 2x, 4x, 10x and 20x objectives with diffusing filter slider
• PL10x/22 mm focusable eyepieces with eye cushions; accepts 24 mm reticle
• Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides
• Stand: All metal structural frame with molded plastic protective shell; 5v USB-C charging port on back for personal mobile device
• Stage: Double-layer, rackless mechanical stage with ceramic insert; size 210 x 170 mm; X-Y movement range 78 x 51 mm, Low position right hand controls
• N.A. 1.25 Abbe Condenser with iris diaphragm; slot for phase contrast or darkfield sliders
• Coaxial coarse and fine focus controls
• 3W LED with variable intensity control; LED bulb is rated for over 25,000 hours of continuous use; internal universal power supply 110-240V
• Accessories: Dust cover, power cord, immersion oil and instruction manual
• Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

Specifications

• Eyepiece: PL-WF 10X/22 mm
• Lighting Type: LED
• Model: ACCU-SCOPE
• Product Type: Trinocular LED Microscope

• Head Style: Binocular, Tilting
• Magnification Power: 20X, 40X, 100X, 200X
• Objective Types: Plan Achromatic
• Voltage: 110/240 V
