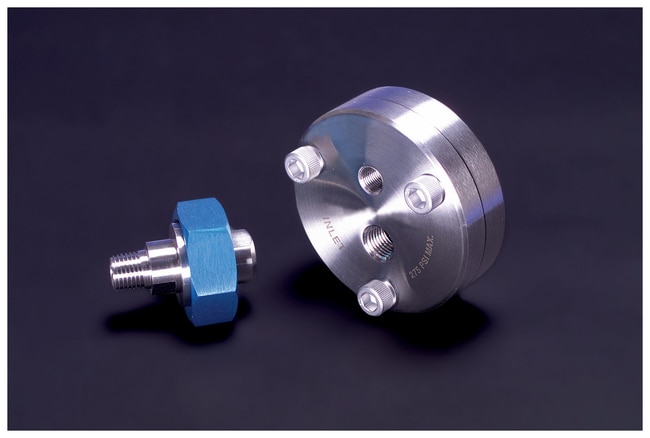

Fisherbrand™ Stainless-Steel Gas Line Low-Pressure Filter Holder

Catalog No. 0975313C Shop All Fisherbrand Products
Change view
Click to view available options
Gas Line Holder Ss 47mm
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No.
09-753-13C Gas Line Holder Ss 47mm
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 09-753-13C

Description

Recommended for inline ultracleaning/sterilization of air, gases, compressed gases, and liquids at ≤50psi. Ideal for filtering pressure vessel gas inlets, gases from pressure pumps. (With gases containing moisture or water droplets, use 0.5μm pore size PTFE membranes) Feature threaded female locking nut—lets you change filters without removing holder from gas lines; can be used with flow in either direction. Two stainless-steel screens provide filter and back-pressure support; protect membrane.
Includes Type 316 stainless-steel inlet and outlet bodies; two support screens (back pressure and photo etched), and locking nut; under-drain screen; nickel-plated pipe plug; and one O-ring. Upstream and downstream adapters are available; sold separately (NC9286360). Autoclavable, with or without membrane in place.

†Autoclavable with or without membrane in place.

†At 10psi differential pressure.

TRUSTED_SUSTAINABILITY

Specifications

Material Stainless Steel
Filtration Area 13.8 cm2
Max. Pressure 20 bar (290psi)
Type Gas Line Holder
