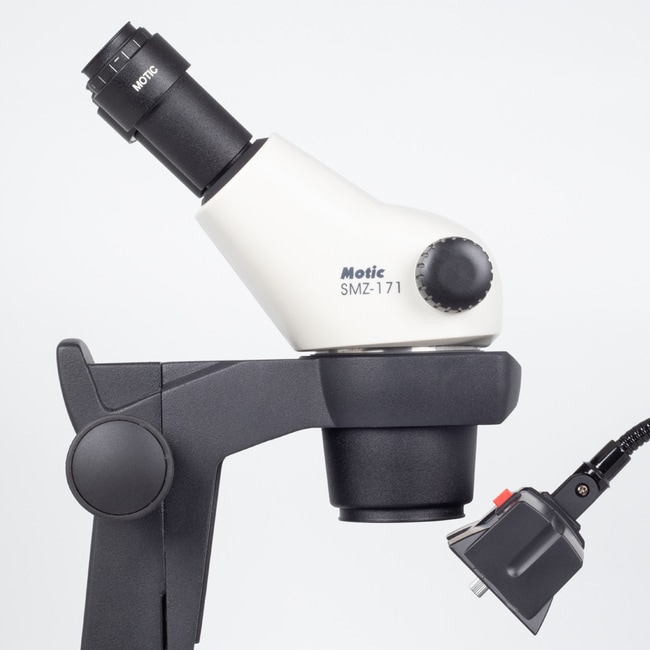

Motic™ GM-171 Stereo Microscopes

The GM-171 is a sophisticated stereo microscope setup for the inspection of gems and minerals. All GM systems are based on the respective stereo microscope, implementing transmitted/incident illumination dedicated to the specifics of translucent precious stones.

Supplier:  Motic™ 1100200600852

Catalog No. 01-257-531

Description

• The Greenough zoom systems start with a 6.7:1 zoom with 23 mm Field of View
• Total magnification can be extended with alternative eyepieces up to 20X and auxiliary objectives up to 2X
• From plain stands without illumination to integrated Halogen/LED equipment for incident and transmitted light: diverse compact solutions for observation and documentation are available
• Incident illumination: Fluorescent 7 W with Gooseneck adjustable
• Transmitted illumination: Quartz Halogen 6 V/30 W with intensity control
• Microscope stand is tiltable from 0° (upright) to 45° to suit individual seating positions and rotatable by 360° to share visual insights
• Interpupillary distance can be set from 52 to 75 mm, while diopter adjustment on both eyepieces allows an ideal compensation of sight defects and easy use of reticles

Specifications

• Magnification Power: 5X, 10X, 0.75X
• Weight (Metric): 8.2 kg
• Head Style: Trinocular
• For Use With (Application): Examination of Gems and Precious Stones
• Working Distance: 110 mm

• Zoom Range: 6.7:1
• Dimensions (L x W x H): 391 x 236 x 505 mm
• Lighting Type: Fluorescent, Halogen
• Eyepiece: WF 10X/23 mm
