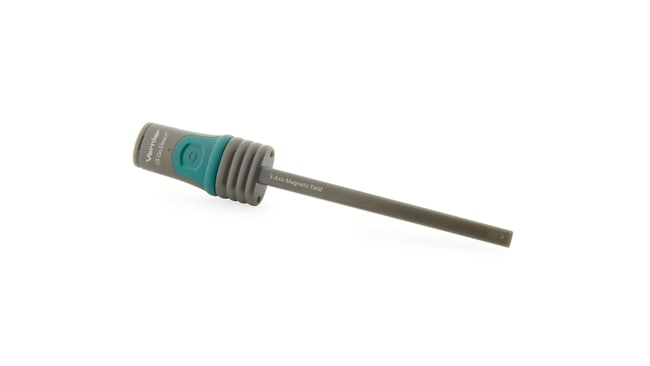

Vernier™ Go Direct™ 3-Axis Magnetic Field Sensor

Vernier™ Go Direct™ 3-Axis Magnetic Field Sensor allows you to determine the magnitude and direction of the magnetic field at any point in space.

Supplier:  Vernier™ GDX3MG

Catalog No. S39696

Description

• Measures the components of the magnetic field along three orthogonal axes.
• If desired, measure the field along only two axes, or even one axis, choosing the direction that is best for the experiment.
• Can be used in a variety of experiments:
  • Quantify the magnetic field strength of induced magnets.
  • Determine the declination and inclination of the Earth’s magnetic field at your location using vector components.
  • Investigate the relationship between magnetic field strength, coils per unit length, and current in the center of a solenoid.
• Robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly.
• Dimensions: 19 cm long, wand portion 12.2 cm long. Wand tapers from 0.8 cm square at handle to 0.7 cm square at tip.
• Designed to be placed inside a solenoid if needed.

Specifications

• Calibration: Factory-calibrated
• Interface: Bluetooth or USB
• For Use With (Application): Graphical Analysis 4 or LabQuest App
• Temperature Range (Metric): -40°C to +85°C

• Grade: Middle School, High School, College
• Warranty: 5 Year Limited
• Range: ±5 mT and ±130 mT
• Length (Metric): 19 cm

Safety and Handling

WARNING: Cancer - www.P65Warnings.ca.gov
