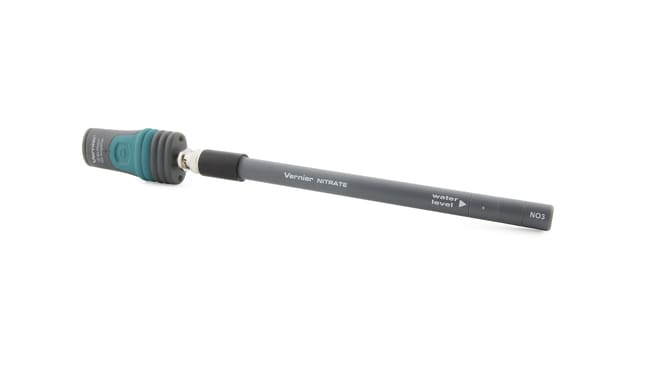

Vernier™ Go Direct™ Nitrate Ion-Selective Electrode

Vernier™ Go Direct™ Nitrate Ion-Selective Electrode can be used to measure the concentration of nitrate in aqueous samples.

Supplier:  Vernier™ GDXNO3

Catalog No. S39720

Description

• Range (concentration): 1 to 14,000 mg/L (or ppm)
• pH range: 2.5 to 11 (no pH compensation)
• Interfering ions: ClO₄^–, I^–, ClO₃^–, F^–
• Electrode slope: 55 ±3 mV/decade at 25°C
• Electrode resistance: 0.1 to 5 MΩ
• Minimum sample size: must be submerged 2.8 cm (1.1 in.)
• Includes:
  • Go Direct ISE Amplifier attached to a Go Direct Nitrate Ion-Selective Electrode BNC
  • Micro USB cable
  • 30 mL bottle of High Standard solution with SDS (100 mg/L NO₃^–)
  • 30 mL bottle of Low Standard solution with SDS (1 mg/L NO₃^–)
  • Short-Term ISE Soaking Bottle
• Nitrate concentration, which can be increased by acidic rainfall, fertilizer runoff from fields, and plant or animal decay or waste, is an important parameter in nearly all water quality studies. The Go Direct Nitrate Ion-Selective Electrode is used to wirelessly determine the concentration of the nitrate ion in a water sample. These levels can be measured as mV or mg/L.
• The versatile BNC connector allows students to easily replace the electrode when it expires or becomes damaged. You need only replace the electrode and not the entire sensor—lowering your overall equipment costs.
• The Go Direct Nitrate Ion-Selective Electrode has a combination-style, non-refillable, gel-filled electrode. Like all other PVC ISE membranes, the membrane on the ISE has a limited life expectancy. However, the replaceable module of ISE allows you to simply discard the used membrane module and replace it with a new one.

Specifications

• Calibration: Calibrated 1 to 100 mg/L
• Interface: Bluetooth or USB
• For Use With (Application): Graphical Analysis 4 or LabQuest App
• Range: ±1000 mV

• Grade: High School and College
• Warranty: 5 Year Limited
• Accuracy: ±10% of full scale
• Temperature Range (Metric): 0°C to 40°C
