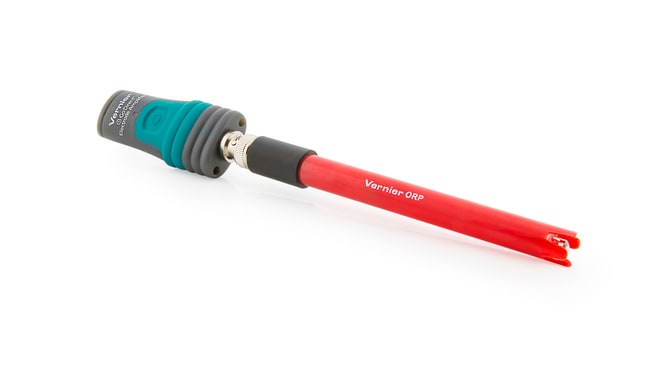

Vernier™ Go Direct™ ORP Sensor

Vernier™ Go Direct™ ORP Sensor measures the ability of a solution to act as an oxidizing or reducing agent.

Supplier:  Vernier™ GDXORP

Catalog No. S39724

Description

• Use the Go Direct ORP Sensor to measure the ability of a solution to act as an oxidizing agent and to quantify ion activity. This sensor measures the capacity of a solution to either release or accept electrons from chemical reactions.
• This sensor is comprised of an ORP electrode connected to a Go Direct Electrode Amplifiervia a BNC connector. This design enables you to use the Go Direct Electrode Amplifier with other Vernier electrodes, such as the pH Electrode, Flat pH Electrode, ORP Electrode, ISE electrode, or a third-party electrode.
• Determine the equivalence point of an oxidation-reduction titration.
• Measure the oxidizing ability of chlorine in swimming pools.
• Investigate the ORP of drinking water.
• Storage solution: pH-4/KCl solution (10 g KCl in 100 mL buffer pH-4 solution)
• ORP element: 99% pure platinum band sealed on a glass stem
• 12 mm OD
• Impedance: ∼20 kΩ at 25°C
• Input range: ±1000 mV

Specifications

• Type: Sealed, Gel-filled, Epoxy Body, Ag/AgCl Reference
• Grade: High School and College
• Warranty: 5 Year Limited
• Accuracy: ±20 mV

• Includes: Micro USB Cable
• Interface: Bluetooth or USB
• For Use With (Application): Graphical Analysis 4 or LabQuest App
• Temperature Range (Metric): 0°C to 60°C

Safety and Handling

WARNING: Cancer - www.P65Warnings.ca.gov
