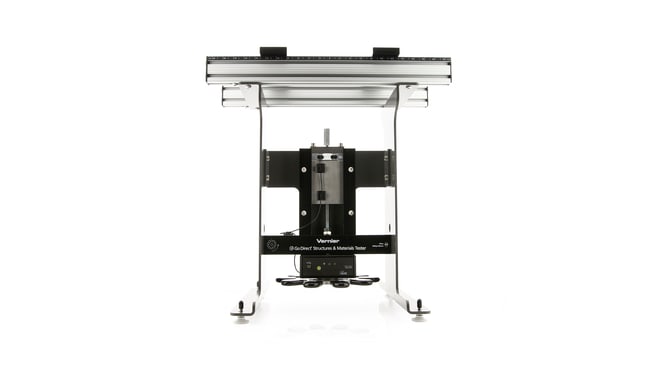

Vernier Go Direct™ Structures & Materials Tester

The new Go Direct™ Structures & Materials Tester helps students evaluate structure and material strength by measuring the applied load and deflection and graphing the resulting data in real time. This tester gives teachers a great way to motivate their students when it is used for engineering activities and competitions with the free Go Direct ™ Bridge Competition Software.

Supplier:  Vernier GDXVSMT

Catalog No. S1724325

Description

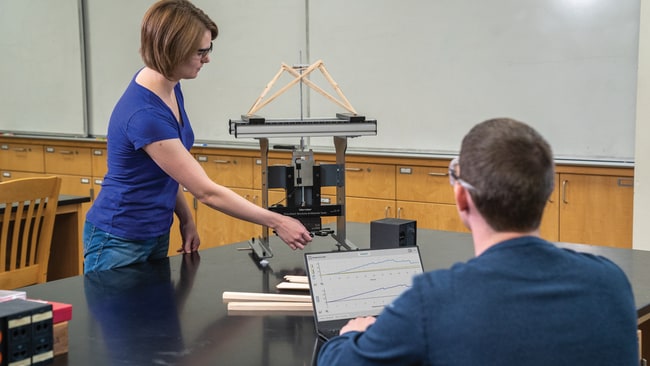

The new Go Direct™ Structures & Materials Tester can be used to teach engineering concepts and design processes. Students evaluate truss, bridge or other structure strength by measuring the applied load and deflection and graphing the resulting data in real time. Students can more easily apply the redesign phase of the engineering design process, as the tester will cause the weakest element of a structure to fail, leaving the remaining elements intact.

Get your students learning right away with the included NGSS-aligned Materials Testing: Beams to Bridges e-book. Students complete these engaging activities to investigate various materials and structures. Topics include beams, trusses, determining modulus of elasticity, and bridges.

Boost student motivation and learning with bridge-building competitions. Vernier's free Go Direct™ Bridge Competition Software provides immediate, side-by-side comparisons of structure strength for your entire class. The software provides real-time graphing, giving students immediate feedback on bridge performance.

Features

Load Cell

• Operational Range: 0 to 1,000 N
• Positive stop to prevent sensor damage
• Resolution: 0.1 N

Displacement Sensor (encoder)

• Range: 0 to 7 cm
• Resolution: 1.0 μm

Includes

• Go Direct™ Structures & Materials Tester
• Materials Testing: Beams to Bridges with Go Direct™ Structures & Materials Tester e-book

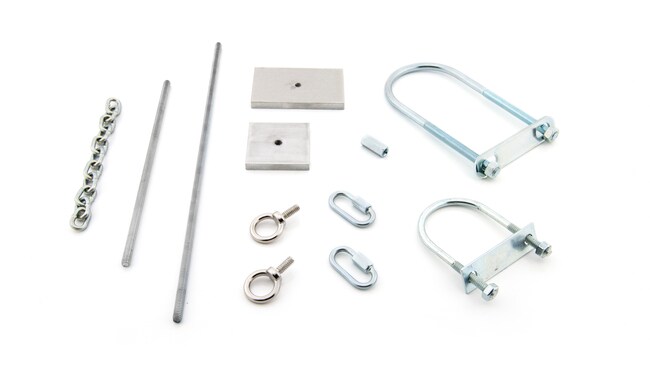

• Tackle Kit
• Free download: Go Direct™ Bridge Competition Software
• Assembly Instructions
• USB micro cable

Specifications

• Grade: Middle School, High School, College
• For Use With (Application): Used to test material strength of bridges and other structures
• Dimensions (L x W): 45 x 50 cm (17.7 x 19.7 in.)
• Length (Metric): 45 cm
• Width (Metric): 50 cm

• Material: Aluminum
• Measurement Range: Operational Range: 0 to 1000 N
• Length (English): 17.7 in.
• Width (English): 19.7 in.
• Weight (English): 22 lb.
