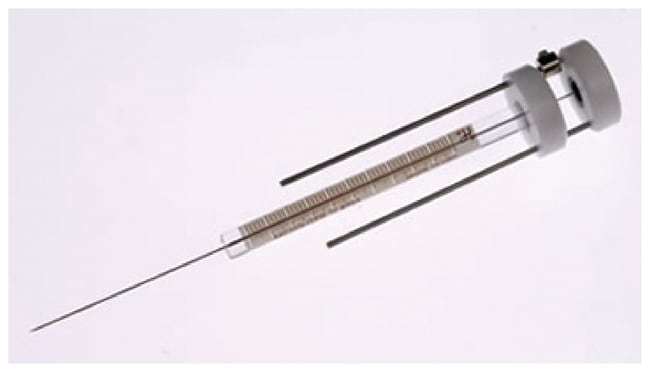

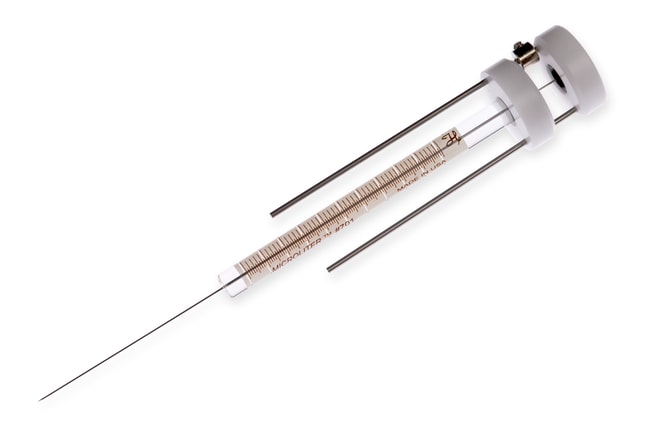

Hamilton™ 700/700 Microliter™: N Termination

Description

Syringes have a built-in syringe guide, designed to prevent the plunger from bending and pulling out of the syringe

Microliter (700/7000 series) syringes with a stainless steel plunger that is hand-fitted to the glass barrel and designed for liquid sampling. Syringes are cemented needle (N) termination. Available in 0.5 to 10 μL in volume.

Cemented Needle (N)- For low volume syringes the needles are cemented into the glass syringe barrel at a point corresponding to the zero graduation mark. With this termination, dead volume is limited to the internal volume of the needle. Not autoclavable. Needle gauge is determined by the syringe volume and are not user-selectable.

Needle Point Styles

• Point Style 2 - Sharp, beveled, curved, non-coring needle point recommended for septum penetration. Available gauges: 22s and 26s
• Point Style 3 - Blunt needle point for use with HPLC injection valves and for sample pipetting. Available gauges: 22, 23, 24, 25s, 25, 33

Specifications

• Autoclavable: Not Autoclavable
• Material: Borosilicate Glass (Barrel), Stainless Steel (Plunger)
• Needle Gauge: 26s G
• Diameter (English) Inner: 0.01 in.
• Diameter (English) Inner Needle: 0.005 in.
• Diameter (Metric) Inner Needle: 0.13 mm
• Diameter (English) Outer Needle: 0.01 in.
• Diameter (English) Outer: 0.26 in.
• Diameter (Metric) Inner: 0.48 mm
• Diameter (Metric) Outer: 6.6 mm
• Diameter (Metric) Outer Needle: 0.47 mm
• For Use With (Application): Designed for liquid sampling to achieve the highest level of accuracy and precision possible
• Includes: Built-in syringe guide, small plunger wires
• Length (English): 2 in.
• Length (English) Needle: 2 in.
• Length (Metric): 51 mm
• Product Type: MicroliterGeneral Purpose Syringe
• Max. Pressure: 2000 psi
• Max. Temperature (English): 122°F
• Max. Temperature (Metric): 50°C
• Min. Temperature (English): 50°F
• Model: 701
• Needle Point Number: 2
• Min. Temperature (Metric): 10°C
• Quantity: Ea.
• Volume (Metric): 10 μL
• Length (Metric) Needle: 51 mm
• Needle Point Style: Sharp, Bevel, Curved, Non-coring
• Connection Type: Cemented
