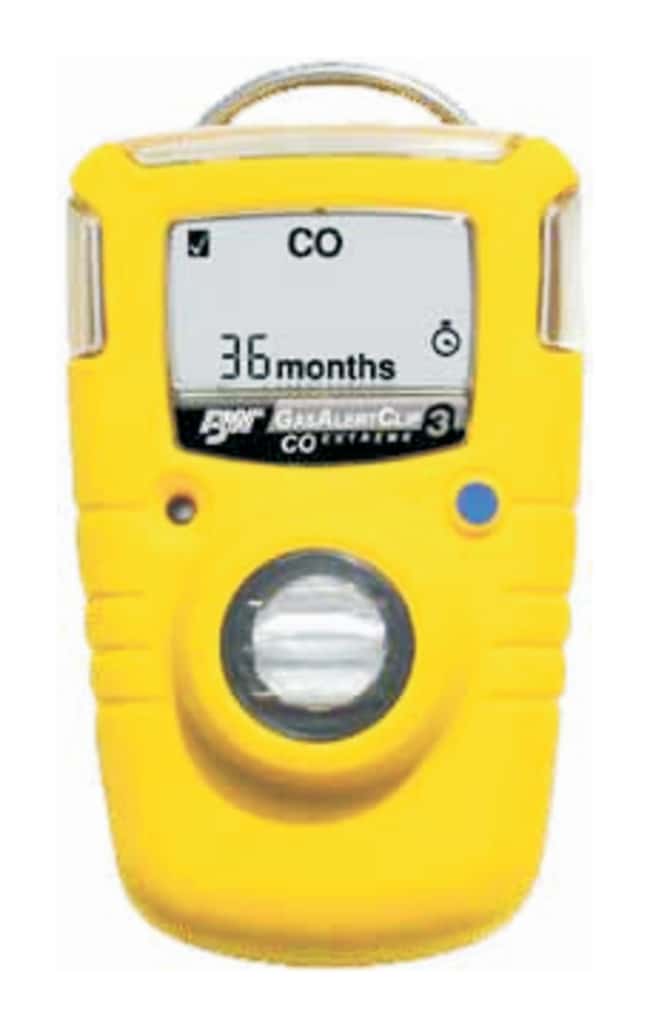

Honeywell Analytics™ GasAlertClip Extreme Single-Gas Detectors

Durable, reliable, accurate, easy to use

Supplier:  Honeywell Analytics™ GA36XTM

Catalog No. 19-413-370

Description

Simplicity and minimal training requirements make these gas detectors low-cost option and compact, lightweight design makes them versatile and comfortable.

• Full function self-test of sensor, battery status, circuit integrity and audible/visual alarms
• Bright wide-angled visual alarm bars and internal vibrating alarm for high noise environments
• Large confidence LCD displays life remaining in months, days and hours
• Water resistant

SO₂

• Temperature Range: -30° to +50°C (-22° to +122°F)
• Measuring Range: 0 to 100ppm
• Alarm Level (low/high): 5/10ppm
• Warranty: Two-year detector only

O₂

• Temperature Range: -20° to +50°C (-4° to +122°F)
• Measuring Range: 0 to 30.0% by vol
• Alarm Level (low/high): 19.5/23.5%
• Requires calibration
• Warranty: Two-year detector only

CO

• Temperature Range: -30° to +50°C (-22° to +122°F)
• Measuring Range: 0 to 300ppm
• Alarm Level (low/high): 35/200ppm
• Two- and three-year detectors available

H₂S

• Alarm Level (low/high): Selectable to 5/10ppm or 10/15ppm
• Temperature Range: -40° to +50°C (-40° to +122°F)
• Two- and three-year detectors available
• Measuring Range: 0 to 100ppm

Applications:

For detection of H₂S, CO, SO₂, O₂

Compliance

ATEX: CE III 1 G Exia IIC T4, CE: European Conformity, Class I, Division 1, Group A, B, C, D, IECEx: Exia IIC T4, INMETRO: BR Exia IIC T4, EMC Directive 89/336/EEC

Warranty and Services

Two- or three-year warranty from activation (given normal operation plus one year shelf life)

Specifications

• Alarm Types: Visual, vibrating, audible (95 dB)
• Certifications/Compliance: ATEX: CE III 1 G Exia IIC T4, CE: European Conformity, Class I, Division 1, Group A, B, C, D, IECEx: Exia IIC T4, INMETRO: BR Exia IIC T4, EMC Directive 89/336/EEC
• Depth (Metric): 2.79 cm
• Display Type: LCD
• Height (Metric): 8.12 cm
• IP Rating: 66/67
• Measurement Range: 0 to 300
• Temperature Range (Metric): -30°C to +50°C
• Weight (English): 2.7 oz.
• Width (English): 2 in.

• Battery Life: 3 Years
• Depth (English): 1.1 in.
• Components Measured: Carbon Monoxide
• Height (English): 3.2 in.
• Humidity Range: 5 to 95%
• Length (Metric): 5.08 cm
• Temperature Range (English): -22°F to +122°F
• Warranty: 2 or 3 Years
• Weight (Metric): 76g
• Width (Metric): 5.08 cm
