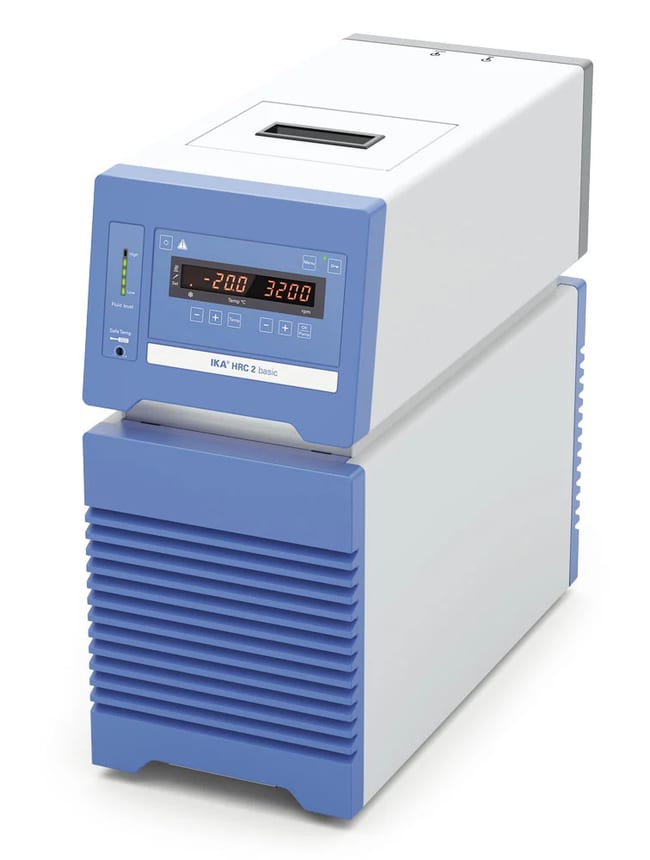

IKA™ HRC 2 Compact Refrigerated and Heating Circulator

Catalog No.	Capacity (Metric)
11-116-978	1.4 - 4.0 L

Catalog No. 11-116-978 Supplier IKA™ Supplier No. 0025003743

Description

The compact refrigerated and heating circulator HRC 2 basic is renowned for its high energy efficiency, a working temperature powerful infinitely range from -20°C to 100°C and a variable pressure and suction pump. The on-demand and speed-controlled compressor reduces noise and operating costs.

• -20°C to 100°C working temperature
• The high-quality Isolation of the 4 L bath allows fast heating and reduces heat input when cooling
• Using the external temperature control circuit is possible for up to 2.5 L thermofluid without a refill
• Integrated hopper and drain valve ensure a safe and clean handling of the thermofluid
• Easy-to-open front flap allows an easy cleaning of the cooling unit’s air filter. There is a drain valve on the front side of the bath where a hose can be connected to empty the bath, so the user does not get in direct contact with the thermofluid.
• Speed-controlled refrigeration system with 400 W cooling capacity
• Speed-controlled pump make of PEEK: (0.5 bar; 22 L/min)
• 1500 W heating capacity (1200 W @115V)
• Digital level indicator
• R134a cooling agent
• Safety classification III (FL) according to DIN 12876
• Adjustable temperature safety circuit
• RS 232 and USB interfaces

Specifications

• Capacity (Metric): 1.4 - 4.0 L
• Cooling Capacity: 20°C/400 W
• Flow Rate: 21 L/min.
• Temperature Range: 20°C to 100°C
• Type: Circulator
• Electrical Requirements: 115 V, 50/60 Hz, 1500 W
