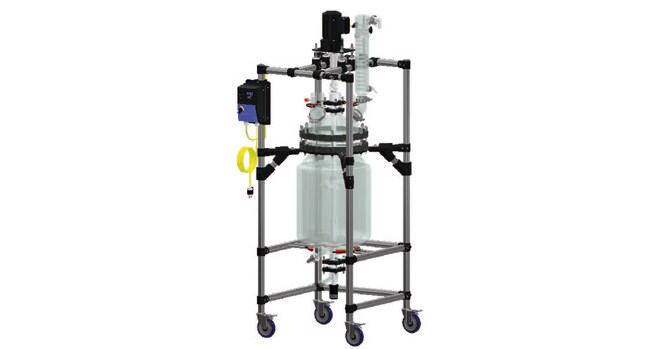

AGI NORTH AMERICA INC HS Martin 50L jacketed reactor system installed in a corrosion resistant mobile framework, equipped with 4ft² (.37m²) condenser and electric motor controlled by a Nema 4X VFD

Supplier:  AGI NORTH AMERICA INC 5003906050F

Reactor pressure rating: up to 7PSI (.5Bar) to full vacuum-Reactor jacket volume: ~20L-Reactor jacket provides ~7 ft² (.7m²) of heat transfer surface area-Framework constructed with polished SS pipe mounted on lockable, non-marring swivel casters-System rated to handle continuous temperatures of +200 deg C-Glassware is constructed of 33 expansion borosilicate glass-Provided with a cover-mounted thermowell along with 4 unused ports for other accessories-The jacketed reactor has graduation scales on both the front and rear for easy viewing-Flush bottom valve eliminates “dead space” in the bottom of the reactor while providing complete draining of reactor-Wetted materials: either borosilicate glass or PTFE-Oring material: FKM. Other compounds available upon request-Jacket nozzles equipped with M24 threaded adapters to match most circulators-AC 3-phase inverter duty motor, 3/8 HP, 58 in-lbs of torque, variable speed to 340rpm-VFD: NEMA 4X/IP66 inverter w. digital display

Catalog No. NC2417598
