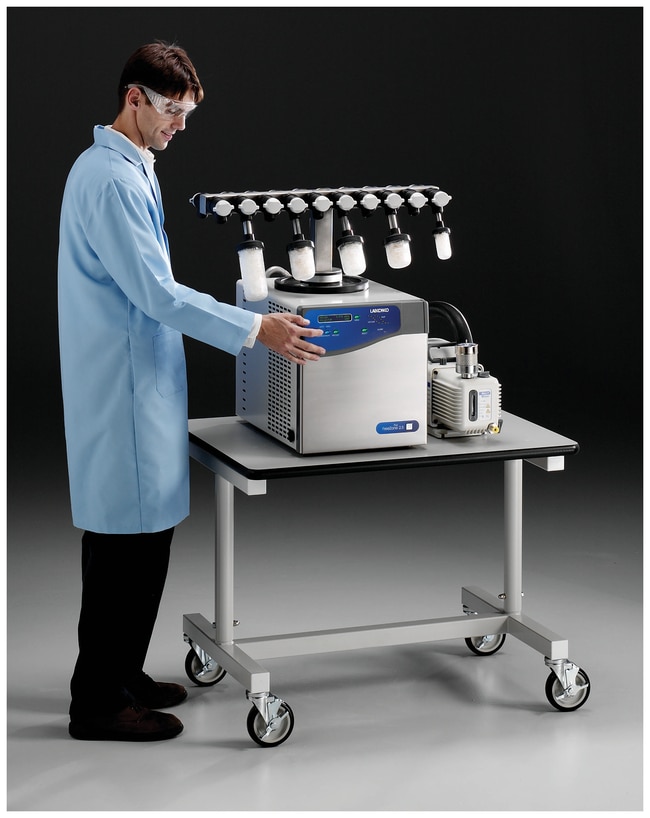

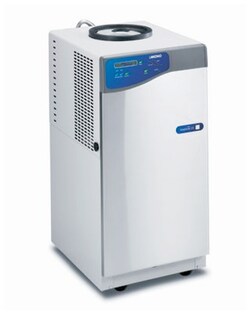

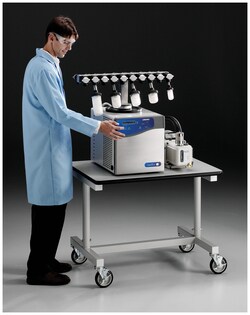

Labconco™ Cascade FreeZone Plus™ Freeze-Dry Systems, US Models

Designed to freeze dry materials with low-eutectic points

Includes:

• 2.4m (8 ft.) cord
• Models wired for 115V, 60Hz include 3-wire cord with 20A NEMA 5-20P plug

Catalog Number	Mfr. No.	Capacity	Product Type	Electrical Requirements	Model
16-208-5010	Labconco™ 7934022	6L (1.58 gal.)	Freeze-Dry system basic unit with Purge Valve	115V 60Hz, 16A	Console style
16-208-5012	Labconco™ 7934027	6L (1.58 gal.)	Freeze-Dry system basic unit with mini chamber, PTFE-coated collector, and purge valve	115V 60Hz, 16A	Console style

Description

Designed to freeze dry materials with low-eutectic points

• With dual CFC-/HCFC-free refrigeration systems used in series to cool stainless-steel collector to -84°C (-119°F) Choice of 2.5L models to fit on benchtop; or freestanding 2.5, 6, and 12L console models Purge Valve option on 6 and 12L models prevents backstreaming of vacuum pump oil and minimizes chance for sample contamination Available with optional collector chamber and coil coated with PTFE for processes involving corrosive compounds
• Upright collector chamber simplifies defrosting; many models include built-in hot gas defrost to quickly melt any collected ice
• Automatic one-button startup initiates condenser cooldown and vacuum pulldown
• LCD indicates temperature in °C or °F; vacuum in mbar, Pa, and torr
• LED vacuum and temperature “waves,” on all except 1L models, show relative system vacuum and collector temperature
• LED alarm light, flashes for abnormal events, including power interruptions, improper power supply, when collector temperature rises above -40°C, and required vacuum pump service
• Vacuum control valve, maintains vacuum level

Connectivity

• RS-232 port can be used to transmit data to a computer

Features

• Easy to service with retractable drain hoses
• Cabinets are white powder-coated steel with brushed stainless-steel front panels and blue accents
• Console models have removable front panels and are roomy enough to accommodate vacuum pump
• Benchtop models easily fit on laboratory benchtop to process light to moderate loads
• PTFE-coated collector chamber and coil for processes involving corrosive compounds are available

Order Info

International models also available. Contact your Fisher Scientific Customer Service Representative for pump compatibility.

Service Plan

Service agreement available.

† Drying chamber or other drying accessory is required for operation.

Specifications

• Hertz: 60Hz
