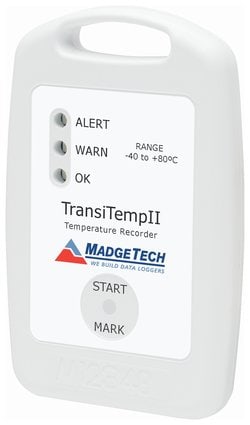

MadgeTech™ TransiTemp II Cold Chain Temperature Datalogger

Affordable, splash-resistant temperature datalogger

Supplier:  MadgeTech™ TRANSITEMPII

Catalog No. 15-060-017

Description

Features a highly precise semiconductor temperature sensor and a sleek ABS plastic enclosure with lanyard attachment. Ideal for monitoring and recording the temperature of all types of perishable products, including food items and medical/pharmaceutical goods, both in storage and in transit.

• Splash resistant (IP65 rated)
• Marking feature allows date and time stamp to be placed in recorded data
• Programmable alarm and warn ranges with alarm delay
• Instantaneous out of range indication
• Can be programmed for immediate start or delayed start for up to 30 days
• Can also be started by use of a magnetic wand
• With no buttons, there is no risk of accidental starting or stopping
• Reading rate can be set anywhere between once every five seconds to every 30 minutes
• Total memory/reading capacity is 32,767 data points
• For increased understanding of events that impact recorded temperatures, user can mark data points with a wave of magnetic wand
• Three status LED indicators alert user to temperature status: green (OK), yellow (WARN), red (ALARM)
• Required interface package (includes software package and docking station): 15-060-038

Datalogging Software (included)

• To download data, slip logger into docking station and select Download Data
• After download, clear, easy-to-read graphs and data tables are automatically created and ready to use
• Temperature data may be shown in degrees Celsius, Fahrenheit, Kelvin or Rankine
• More complex analyses, such as Mean Kinetic Temperature, can be performed with just a click of the mouse
• Users needing to perform additional analyses can easily export data to MS Excel

Verification of safe shipment and storage of perishable goods, Implementation of HACCP programs, cold chain monitoring, medical and pharmaceutical shipping, supermarkets, warehouses, and cold storage.

Order Info

Typical battery life is one year. Datalogger must be returned to manufacturer for battery replacement.

Certifications

NIST traceable

Compliance

CE approved

Specifications

• Type: Cold Chain Temperature Datalogger
• Calibration: Digital Calibration
• Battery Life: 1 Year at 25°C
• Certifications/Compliance: CE
• Model: TRANSITEMP-II
• For Use With (Application): For monitoring and recording the temperature of all types of perishable products, including food items and medical/pharmaceutical goods, both in storage and in transit
• Temperature Resolution: 0.1°C
• Operating Temperature (Metric): -40°C to +80°C
• Weight (Metric): 0.04 kg

• Data Memory: 32,767 Readings
• Battery Type: 3.6 V Lithium
• Includes: 3 Status LED indicators, Lithium coin cell
• Material: ABS Plastic
• Sensor Types: Semiconductor
• Humidity Range: 0 to 100%
• Temperature Range (Metric): -40°C to +80°C
• Weight (English): 1.4 oz.
