Werner Co. Mega-Swivel Concrete Anchor

Catalog No. 17103803
Change view
Click to view available options
Load Bearing Capacity (English):
10,000 lb MBS
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Load Bearing Capacity (English)
17-103-803 10,000 lb MBS
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 17-103-803 Supplier Werner Co. Supplier No. A510001
Only null left
Add to Cart
Add to Cart

Description

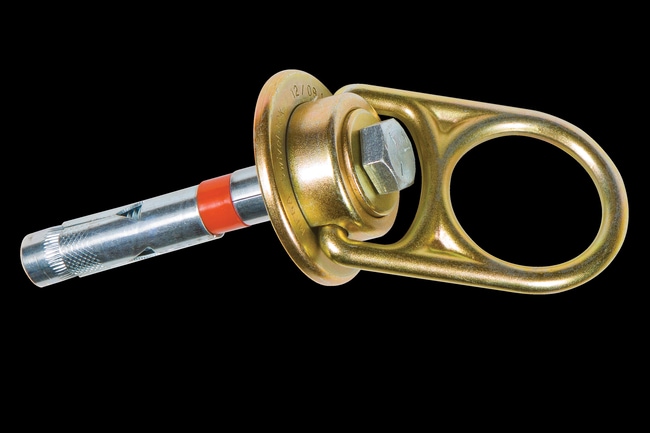

Mega-swivel concrete anchor.

Robust steel design with 360 degree swivel of the forged D-ring

  • Drill hole of 3/4 in. with 5 in. depth
  • Minimum 3000 psi concrete and 7 in. thickness

Specifications

Product Type Swivel Concrete Anchor
Certifications/Compliance Meets ANSI and OSHA Standards
Dimensions (L x W) 5.5 x 3 in.
For Use With (Equipment) Harnesses, SRL
For Use With (Application) Fall Protection
Load Bearing Capacity (Metric) 4535.92 kg MBS
Width (Metric) 7.62 cm
Load Bearing Capacity (English) 10,000 lb MBS
Weight (English) 2 lb.
Weight (Metric) 0.907 kg
Width (English) 3 in.
