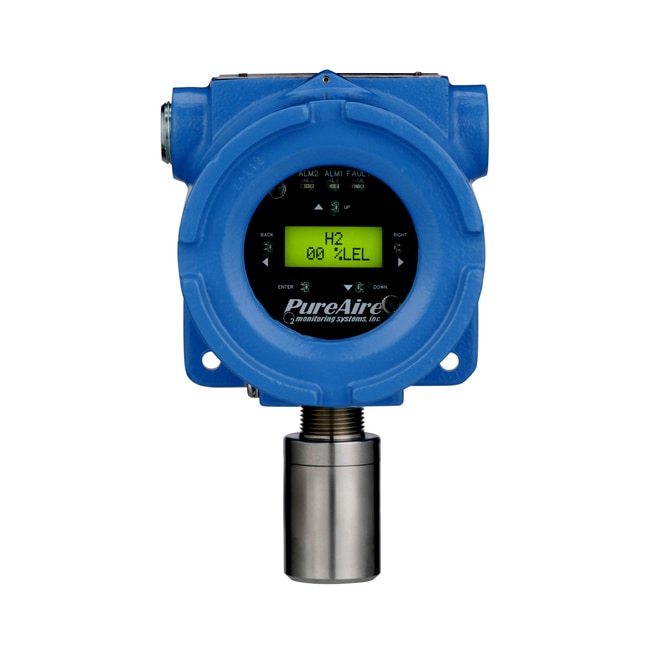

PureAire Monitoring Systems MPS Flammable Gas Monitor

PureAire’s MPS Flammable Gas Monitor detects over 14 gases with one sensor, eliminating the need for multiple sensors. The durable MPS sensor lasts 15+ years, requires no calibration, and accurately detects, quantifies, and classifies flammable gas levels in various environments.

Supplier:  PureAire Monitoring Systems 99214

Catalog No. 17-542-406

Description

• LEL reading for multiple flammable gases with a single senso
• 15+ Year sensor - Zero calibration required
• Mean Time To Failure (Sensor Only): 62 years at 60% confidence or 19 years at 99% confidence
• RS-485 Communication Interface
• Easy to use - Set it and forget it technology
• Zero drift
• Immune to poisoning
• Operating temperatures: -4°F to +140°F (-20°C to +60°C)
• Fail-safe - Built-in self-test
• Back-lit LCD Display
• 4-20mA output
• User-adjustable dual alarm relays
• Durable XP Housing: Certified for hazardous locations
• Ratings: Class I and II, Division 1, Groups B, C, D, E, F, G. Class III Type 4X/IP66 ∣ ATEX* - Ex d IIC ∣ Ex d IIC IEC 60529 IP66 ∣ IECEx* Ex db IIC T4 Gb ∣ Tamb -20°C to +60°C

Specifications

• Components Measured: LEL, Hydrogen, Methane, Propane, Butane
• Type: Fixed Combustible/Toxic Gas Detector
• Voltage: 21 to 24 VDC

• For Use With (Equipment): Gas Detector
• IP Rating: IP66
