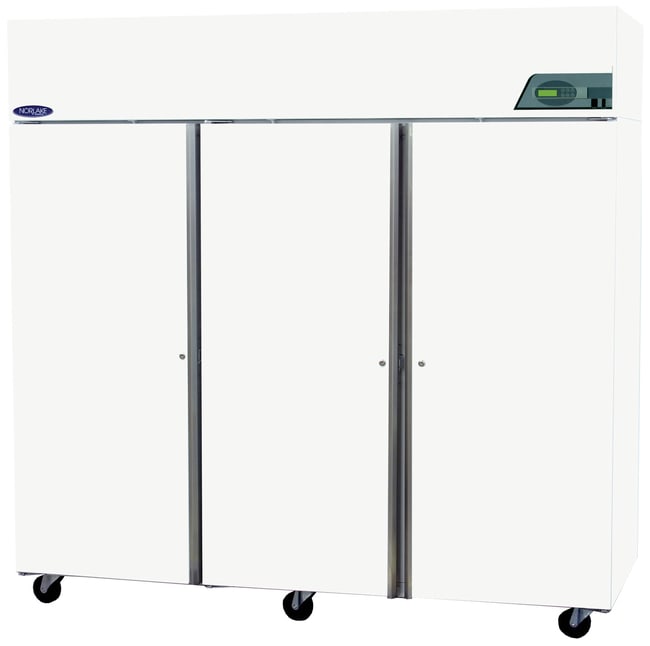

Corepoint Scientific™ Humidity and Temperature Stability Test Chamber (Three Door), 2265.3 L, Stainless Steel

Description

Requires

Cord and plug for 230V 50Hz models. Humidifier reqiures a water source with low mineral content. Water supply connection requires 1/4 in. plastice or copper tubing.

Temperature Range: 5°C to 60°C

• Programmable logic microprocessor controller
• Adjustable control range from 4° to 70°C; operating range with humidity control, 5° to 60°C
• Three sensor system (two product and one air)
• 2 to 10VDC output for product temperature (selectable to air temperature)
• Integrated high/low product temperature alarm test
• Digital calibration air and product
• Real-time clock with date and time display
• Door opening counter with 24-hour automatic reset
• Digital 4x20-character LCD control panel and message center with continuous display of content temperature
• Programmable ramp soak feature
• User password protection (setpoints and parameters)
• 100-event alarm logging, including date/time stamp and content temperatures
• Temperature variation: ±0.5° at 4° to 70C°
• Temperature uniformity: ±1° at 4° to 70C
• Humidity variation: ± 5% at 5° to 60°C

• Audible and visual door-ajar alarm, sensor and power failure alarms, and remote alarm contacts
• Fan motor run time, defrost heater time and condenser/compressor run time monitors
• Top-mounted forced air refrigeration system
• CFC-free high-density polyurethane foam insulation
• Power supply switch
• Solid doors doors feature anti-condensate door fram heater, heavy-duty door pivot hinges, pull-door handles, magnetic door gaskets and centered key door locks
• Six casters (three locking) on three door models
• Interior cabinet is stainless steel and features a drain with plug
• Exterior cabinet front, sides and back are galvanized steel painted with white; top and bottom are galvanized steel
• Three epoxy-coated wire shelves per door section

Warranty and Services

18 months parts and labor, 5 years compressor (US and Canada); 18 months parts (International)

†Based on 23°C, 50%RH ambient conditions, type -24 Ga. thermocouples with 1oz. brass slugs attached, and no contents in the chamber.

‡Cord and plug not included.

Specifications

• Alarm Types: Audible, visual high/low temperature alarm
• Capacity (English): 80 cu. ft.
• Certifications/Compliance: UL, cUL, CE
• Capacity (Metric): 2265 L
• Chamber Material: Stainless Steel
• Temperature Range (Metric): 5°C to 60°C
• Frame Material: Galvanized Steel
• Insulation: Polyurethane Foam
• Refrigerant: R-134a
• Shelf Area (English): 42.8
• Shelf Area (Metric): 3
• Temperature Uniformity: ±1 at 4 to 70°C
• Warranty: 18 Months
• Width (English): 82.5 in.
• Width (English) Interior: 78.5 in.
• Width (Metric): 209.55 cm
• Width (Metric) Interior: 199 cm
• Height (English): 79.62 in.
• Height (English) Interior: 59 in.
• Height (Metric): 202 cm
• Height (Metric) Interior: 149 cm
• Diameter (English) Inside: 30 in.
• Diameter (English) Outside: 34.87 in.
• Diameter (Metric) Inside: 76 cm
• Diameter (Metric) Outside: 88 cm
• Electrical Requirements: 115 to 208/230 V, 60 Hz
• Voltage: 115/208/230 V
• Frequency: 60 Hz
