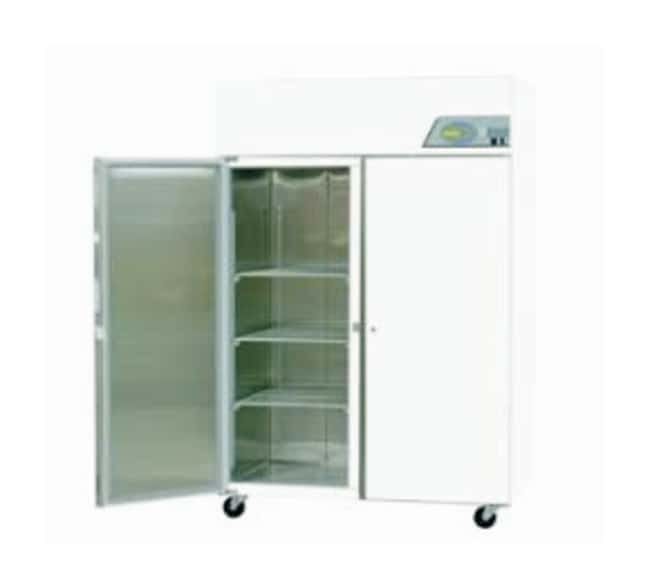

Corepoint Scientific™ Temperature Test Chamber, 680 L

Catalog No.	Voltage
22-650-642	115 V

Catalog No. 22-650-642 Supplier Corepoint Scientific™ Supplier No. NSRI241WSW/8

Description

Temperature Range: 4°C to 70°C

• Digital 4x20 character LCD display microprocessor temperature controller
• Audible and visual Hi/Lo temperature alarm
• Adjustable control range from +4°C to +70°C
• Programmable ramp soak
• Remote alarm contacts
• Continuous product temperature display
• 3 sensor system, 2 product, 1 air
• Power supply switch
• Door ajar alarm, audible and visual
• 2 to 10 volt DC output for product temperature (selectable to air temperature)
• Password protection - set-points and factory settings
• 100 event alarm logging date/time display
• Integrated Hi/Lo product temperature alarm test
• Digital calibration air and product
• Real time clock with date and time display
• Door opening counter with 24 hour automatic reset
• Adjustable alarm beep or constant on (key pad selectable) and alarm volume
• Low battery test switch with buzzer
• Monitors: Fan motor run time, Defrost heater time, Condenser/compressor run time
• Perimeter anti-condensate door frame heater (on/off temperature selectable)
• Sensor and power failure alarms
• Exterior cabinet front, sides and back are painted white
• Exterior cabinet top and bottom are galvanized steel
• Interior cabinet liner is stainless steel
• Cabinet is foamed-in-place with CFC-free high density polyurethane foam insulation
• Solid door(s), full size
• Heavy duty door pivot hinges
• Pull door handles
• Magnetic door gaskets
• Centered key door lock(s) (2 keys)
• Four casters (2 locking) on one and two door models, six casters (3 locking) on three door models
• 3 coated wire shelves per door section
• Air cooled condensing unit
• Top mounted forced air refrigeration system
• Automatic defrost and condensate evaporation

Optional features such as electrical outlet, temperature chart recorder, RS485 communication outputs, access port 2 in. sleeve with cover and more are available. Contact your Fisher Scientific™ representative for details.

Order Info

Cord and plug not included for parts with /5 designation.

Compliance

UL/CUL listed; CE marked

Warranty and Services

18 months parts and labor, 5 years compressor (US and Canada); 18 months parts (International)

Specifications

• Capacity (English): 24 cu. ft.
• Certifications/Compliance: UL, cUL, CE
• Capacity (Metric): 680 L
• No. of Shelves: 3
• Plug Type: L-14-20P and L-14-30P NEMA plug and L-14-20R and L-14-30R NEMA receptacle
• Temperature Range (Metric): 4°C to 70°C
• Display: LCD
• Insulation: CFC free, HDPE Foam
• No. of Doors: 1
• Refrigerant: R-134a
• Shelf Area (English): 12.83
• Warranty: 18 Months
• Width (English): 27.5 in.
• Width (English) Interior: 23.5 in.
• Width (Metric): 69 cm
• Width (Metric) Interior: 59 cm
• Height (English): 79.6 in.
• Height (English) Interior: 59 in.
• Height (Metric): 204 cm
• Height (Metric) Interior: 149 cm
• Diameter (English) Inside: 30 in.
• Diameter (English) Outside: 34.8 in.
• Diameter (Metric) Inside: 76 cm
• Diameter (Metric) Outside: 88 cm
• Weight (English): 380 lb.
• Weight (Metric): 172 kg
• Electrical Requirements: 115 V, 60 Hz
• Voltage: 115 V
• Amperage: 11.5 A
• Frequency: 60 Hz
