BINDER™ Package P Plus - Battery Test Chambers Safety Package for Extended Performance Tests

To conduct tests on lithium-ion batteries, BINDER offers temperature and climate chambers equipped with a range of safety packages that are aligned with EUCAR Hazard Standards, environmental requirements, or test types.

Supplier:  BINDER™ 94000003

Catalog No. 08-112-005

Description

Performance tests:

Various battery-specific parameters, such as the load state, are tested with overlapping temperature ranges. These tests are performed within a safe temperature range for the battery.

The equipment in this safety package is designed for tests on lithium-ion batteries and is exactly in line with EUCAR hazard level 5.

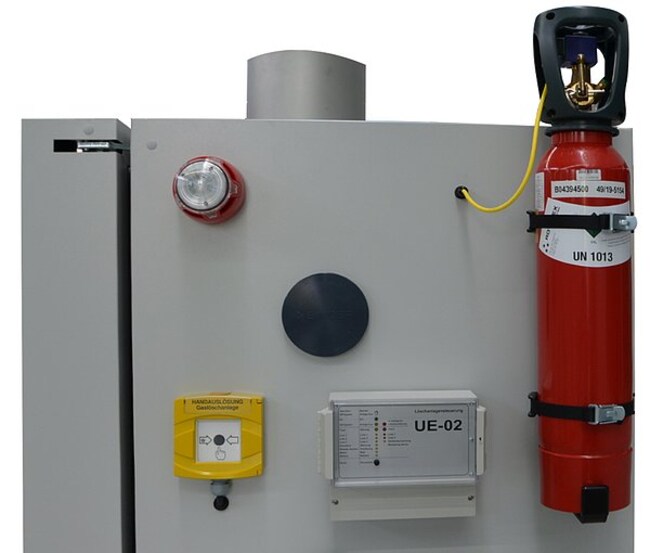

Solution:

• Class 2 independent temperature safety device when temperature is set to 120°C
• Temperature range limited to 110°C on the controller
• Stainless-steel pressure relief flap installed in the middle on top of the unit
• Enhanced door-locking mechanism with reinforced brackets
• Inert gas connections
• CO2 fire suppression equipment

The packages can be adapted to a variety of BINDER models in order to meet test requirements relating to temperature range, climate range, and test area size.

Specifications

• For Use With (Equipment): BINDER Chambers
• Type: Option for BINDER Units
• For Use With (Application): Battery Testing

• Material: Steel

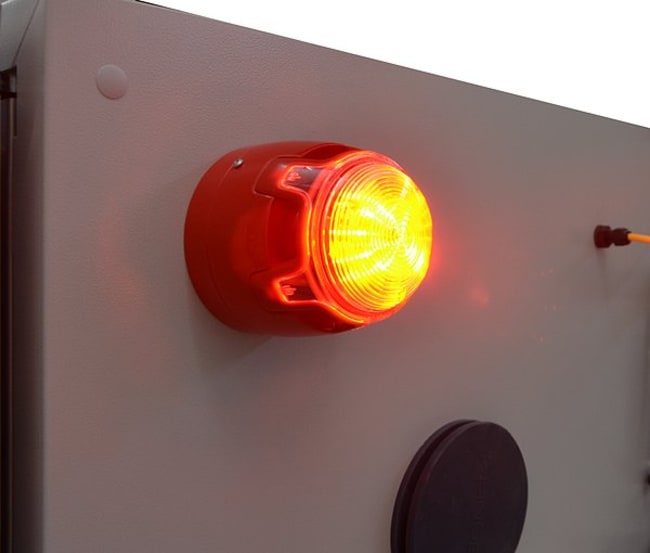

• Features: Temperature range limitation, reversible pressure relief flap, door-locking mechanism, inert gas connections, temperature monitoring, warning indicator lamp, CO2 fire suppression equipment, manual activation
