Mopec PathCam Mobile Imaging Station

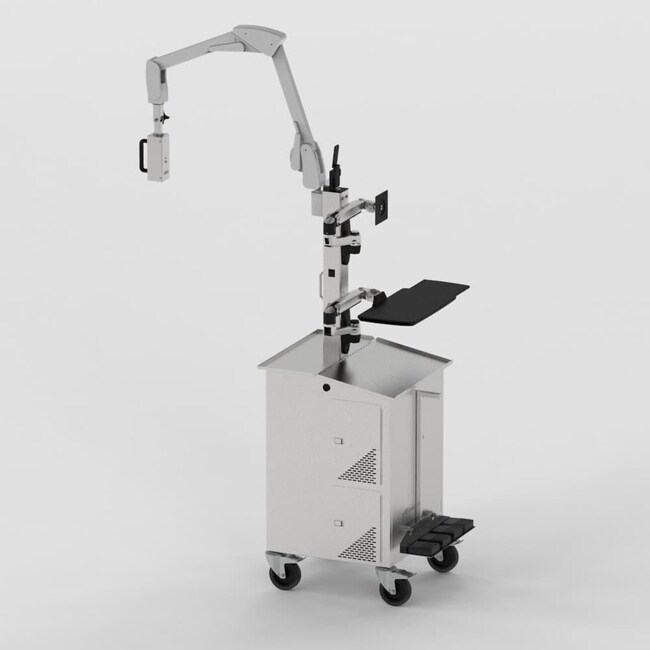

Mopec’s AX260HD/HR Mobile Imaging Station delivers a flexible, high-definition imaging solution for pathology. With a stainless steel base, articulating arms, and silent casters, it supports PathCam HD/HR, enabling seamless capture, streaming, and efficient remote collaboration.

Catalog Number	Mfr. No.	For Use With (Equipment)
21-377-122	Mopec AX260HD	PathCam HD
21-377-123	Mopec AX260HR	PathCam HR

Description

Construction

• Imaging station with mobile base, designed to hold PathCam HD or HR cameras and PC system
• 4 Heavy-duty casters: silent-grade with simple step locking brakes
• Articulating monitor arm and mount
• Articulating arm with platform for keyboard and mouse
• Articulating camera arm with 45 in. reach
• The base includes 4 access doors: 2 on the front and 2 on back for servicing battery and PC

Compatibility

• Compatible with PathCam HD and HR Cameras
• AX047 PathCam Foot Pedal Command

Camera Arm Dimensions

• Column to mid-arm pivot point: 23 in.
• Mid-point to camera-mount: 21 in.
• Maximum reach: 47.5 in. (from column to camera)
• Minimum reach: 18 in. (from column to camera)

Dimensions

• Keyboard Arm: 17.9 - 22.3 in. L x 33.5 in. W x 16.1 in. H
• Monitor Arm: 12.3 in. L x 10.2 in. W x 17.2 in. H

Materials

• Station Column and Base: polished stainless steel, No. 4 finish
• Articulating Camera Arm: durable aluminum construction
• Keyboard & Monitor Arm: powder-coated aluminum
• Performance On/Off power switch for camera
• Removable foot pedal shelf
• Pull handle for transporting
• Wi-Fi antenna
• Tension knob for precise camera pivot
• Power Cable Port for recharging battery backup
• Ethernet Port for direct connection to PC
• USB port for removable foot pedal
• USB port (direct connect to the PC) in countertop storage compartment
• Cable management system

Specifications

• For Use With (Equipment): PathCam HD
