United Scientific™ Primary and Secondary Coils
SDPSCI_ED

Catalog No. S05904 Shop All United Scientific Supplies, Inc Products
Change view
Click to view available options
Grade:
5+
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Grade
S05904 5+
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. S05904 Supplier United Scientific™ Supplier No. PSC001
Only null left
Add to Cart
Add to Cart

Description

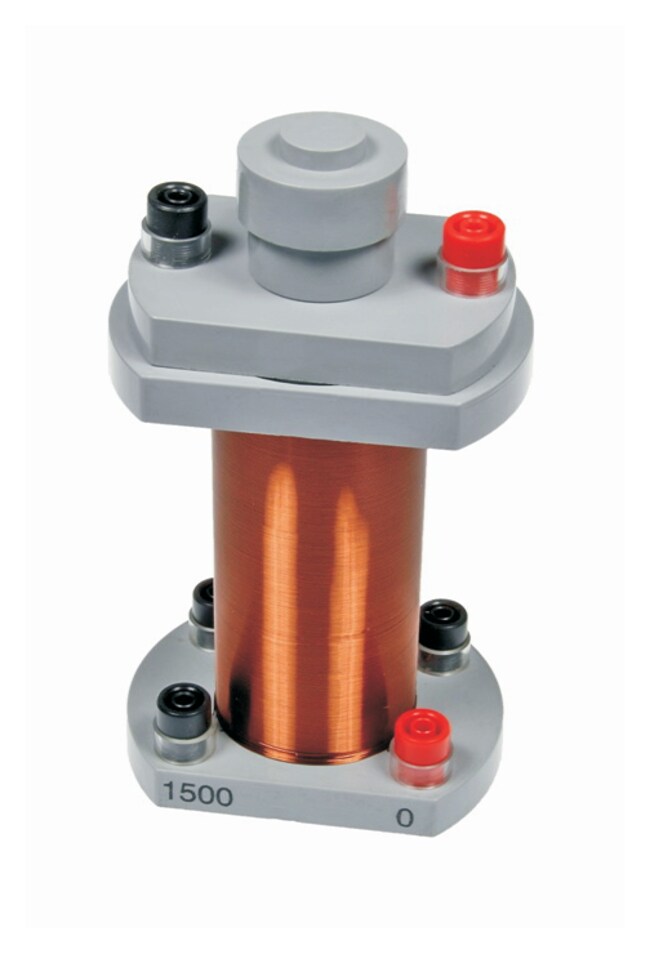

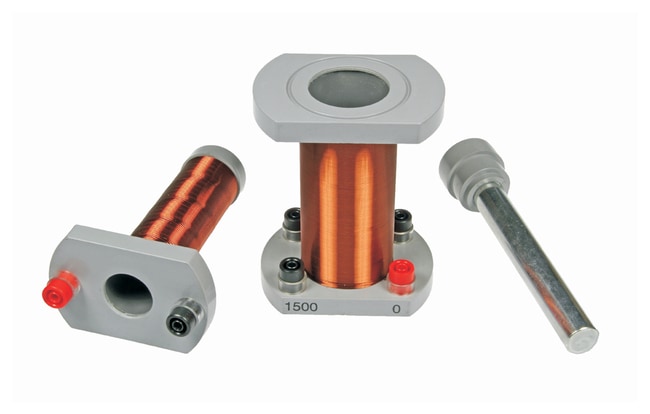

Use these Primary and Secondary Coils for investigating electromagnetic induction.

  • Secondary coil offers more windings than available on many other coils.
  • Wound on robust molded formers fitted with shielded banana jacks.
  • Plated iron core has a molded handle for accurate positioning in the coils.
  • Primary coil has 175 turns of 18 AWG insulated copper wire.
  • Secondary coil has three available windings with 500, 1,000 and 1,500 turns of 26 AWG insulated copper wire.
  • Plated iron core is 19 mm in diameter and 165 mm long (including handle).

Coil and Core Specifications

  • 18 AWG — diameter 3.4 cm, length 10.0 cm, resistance 0.43 ω, self-inductance 3.1 mH
  • 26 AWD — diameter 5.2 cm; length 10.2 cm; resistances 11.5 ω, 23.3 ω, 35.7 ω; self-inductances 490 mH, 1.97 H, 4.43 H
  • Plated iron core is 1.9 cm in diameter and 16.5 cm long (including handle).

Order Info

Dimensions: 10 x 7 x 17.3 cm (3.87 x 2.75 x 6.75 in.). Weights: Product: 907 g (2 lb.), Packed Item: 975 g (2 lb., 2 oz.).

Specifications

Material Copper Wire
Shape Cylindrical
For Use With (Application) For investigating electromagnetic induction
Grade 5+
Product Type Primary and Secondary Coil
Includes Activity guide
Weight (Metric) 907 g
Weight (English) 2 lb.
Dimensions (L x W x H) 10 x 7 x 17.3 cm (3.87 x 2.75 x 6.75 in.)
