Heidolph™ Radleys Reactor-Ready™ Flex Pro Lab Reactor

Catalog No.	Volume (Metric)
13-990-611	5 L

Catalog No. 13-990-611 Supplier Heidolph™ Supplier No. 015950102

Description

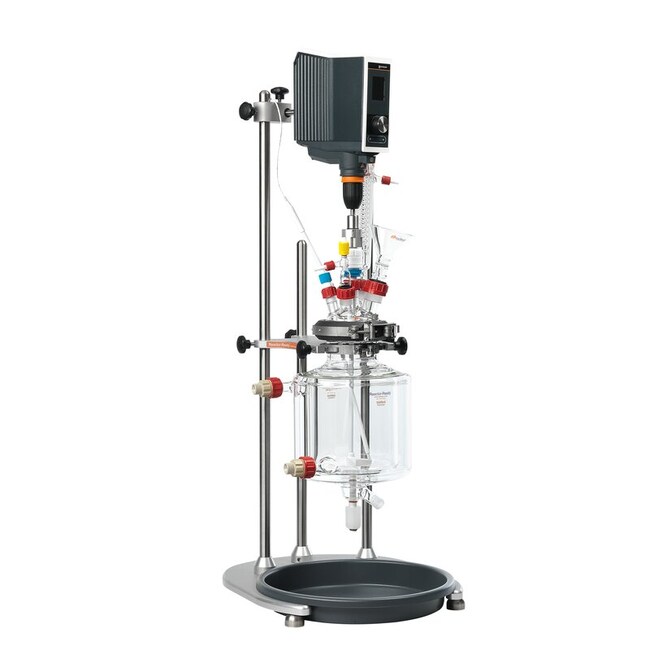

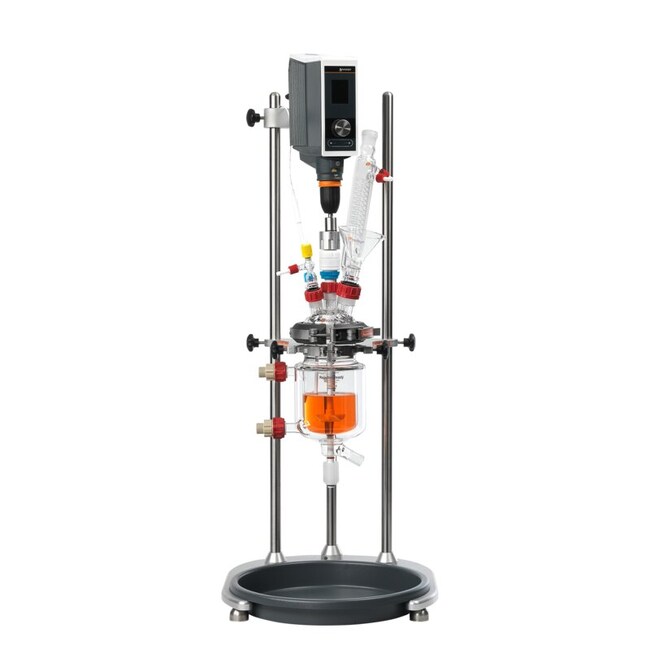

Multi-volume lab reaction station for glass reaction vessels from 250 mL to 5 L. Heidolph Radley Reactor-Ready Flex is designed as a universal reactor work station that can be used for different vessel sizes and different experiments.

• Radleys Reactor-Ready Flex is designed as a universal reactor workstation with a range of easily interchangeable vessels from 100 mL to 5 liters. This can be configured to suit the chemistry and scale needed for each project.
• Ideal for precise temperature control (-70 °C to +230 °C), stirring, and dosing, Reactor-Ready Flex allows chemists to begin process development earlier, with added confidence and safety.
• Includes complete turnkey frame
• Framework: Starter, Includes Drain-down Manifold Kit: No, Stirrer Alignment: Manual, Vessel Clamp: Separate

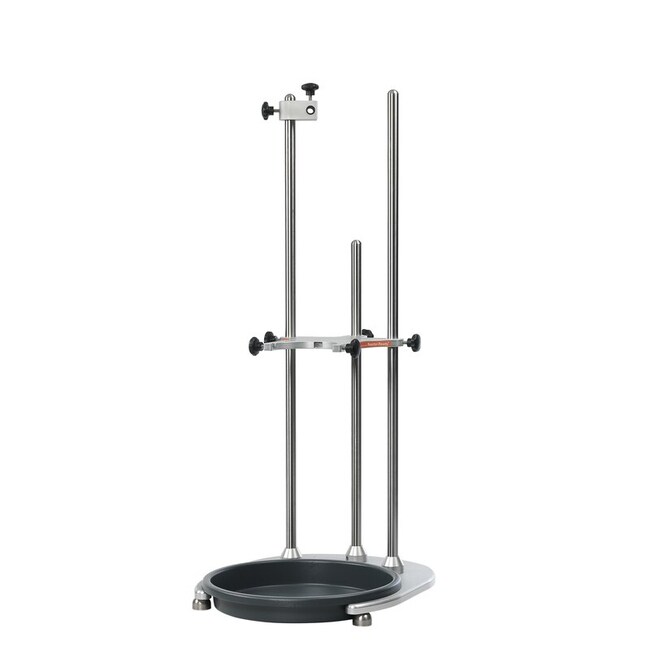

• Starter:
• Core functionality for limited budgets
• No drain-down manifolds
• Compact stirrer support for manual alignment
• Starter can be upgraded to Pro with the addition of the drain-down manifold kit
• Pro:
• With drain-down manifolds for rapid, mess-free vessel exchange
• Manifolds take the weight of the hoses
• I-Beam Stirrer Support - easy alignment on 3 axes
• Configure Reactor-Ready Flex with the help of your Fisher Scientific sales rep
• 1) Select Framework - Starter or Pro
• 2) Select Vessel Kits
• 3) Select Overhead Stirrer
• 4) Select Circulator and Accessories
• 5) Select Software Control
• 6) Select Software Modules
• 7) Select Glassware and Accessories

Specifications

• Volume (Metric): 5 L
• For Use With (Equipment): Framework only - paired with vessel kits, overhead stirrer, circulator, glassware and accessories and optional software
• Includes: Turnkey framework only - single jacketed or vacuum jacketed vessels available separately
• Product Type: Lab Reactor
• Warranty: 1 Year
