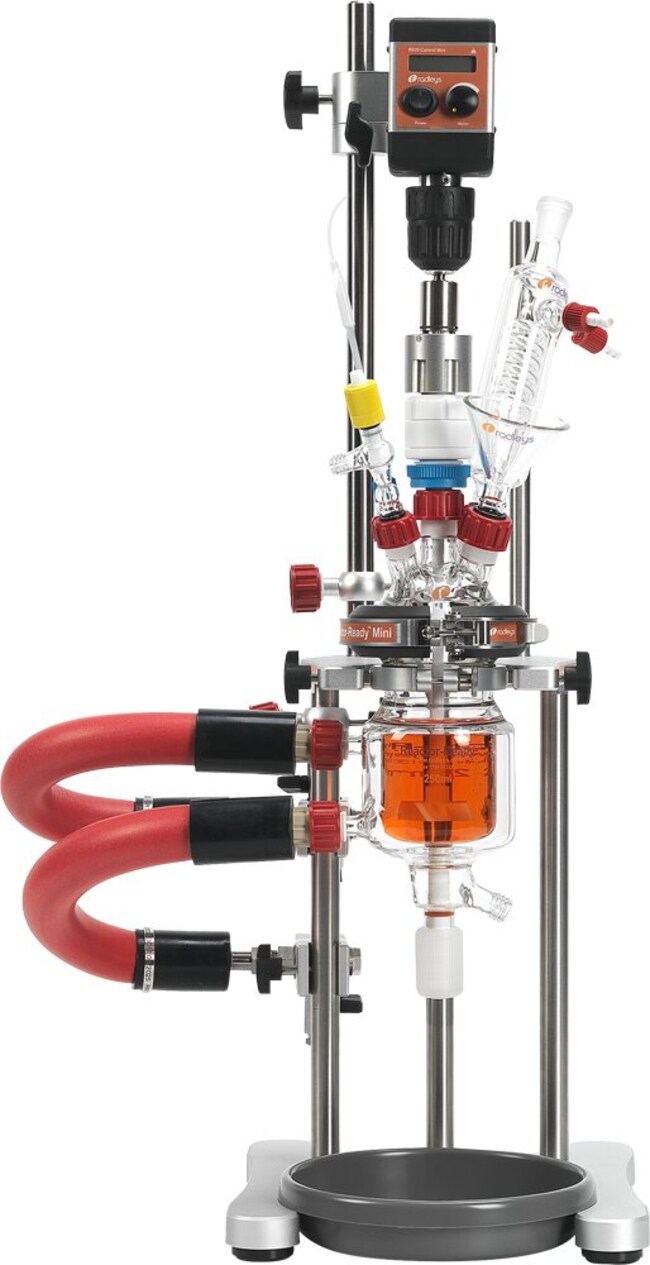

Heidolph™ Radleys Reactor-Ready™ Mini Lab Reactor

Catalog No.	Model	Includes
13-889-881	Pro	Draindown Manifold Kit
13-889-880	Starter	No Draindown Manifold Kit

Catalog No. 13-889-881 Supplier Heidolph™ Supplier No. 015920012

Description

A compact benchtop jacketed lab reactor designed for small‐scale chemistry, offering the same precision, control and flexibility as a full-size Reactor-Ready system

• Radleys Reactor-Ready Mini is a small benchtop jacketed lab reactor that accepts vessels from 50 to 500 ml.
• Designed for small-scale chemistry, it offers the precision, control, and flexibility of a full-size reactor-ready system in a compact, space-saving footprint.
• Ideal for precise temperature control (-70°C to +230°C), stirring, and dosing, Reactor-Ready Mini allows chemists to begin process development earlier, with added confidence and safety.

Includes complete turnkey frame

Starter:

• For more limited budgets, connect your vessel directly to your circulator
• No draindown manifolds
• The starter can be upgraded to Pro with the addition of the draindown manifold kit

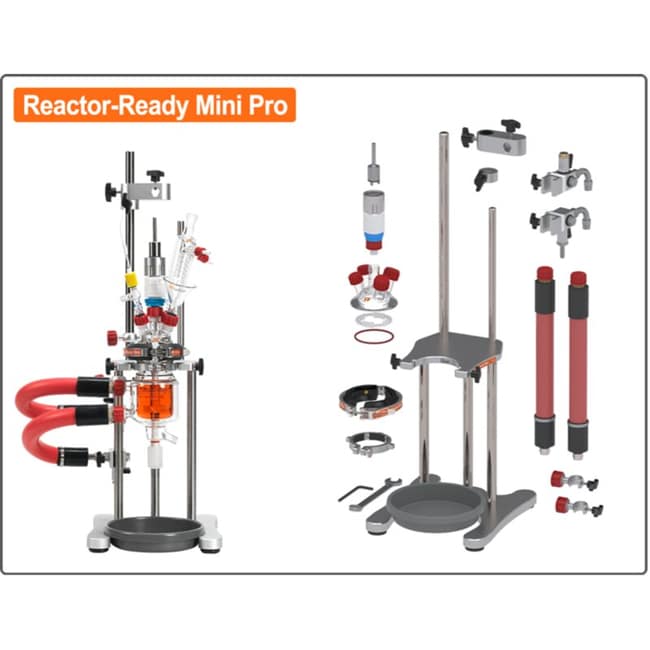

Pro:

• With draindown manifolds for rapid, mess-free vessel exchange
• Manifolds take the weight of the hoses

Configure Reactor-Ready Mini with the help of your Fisher Scientific sales rep

• Select Framework - Starter or Pro
• Select Vessel Kits
• Select Overhead Stirrer
• Select Circulator and Accessories
• Select Software Control
• Select Software Modules
• Select Glassware and Accessories

Specifications

• Volume (Metric): 500 mL
• For Use With (Equipment): Overhead Stirrer, Circulator, Glassware and Accessories
• Includes: Draindown Manifold Kit
• Product Type: Lab Reactor
• Warranty: 1 Year
• Model: Pro
