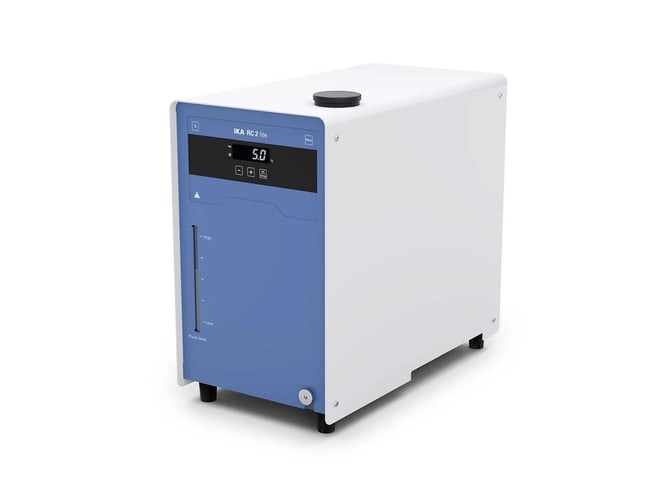

IKA™ RC 2 Lite Compact Recirculating Chiller

Catalog No.	Capacity (Metric)
11-116-946	1 to 3.5 L

Catalog No. 11-116-946

Supplier: IKA™ 0025007939

Description

Compact recirculating chiller with powerful 400 W cooling capacity, designed for simple cooling tasks down to -10 °C.

• Peripheral device for the cooling of rotary evaporators, reflux condensers or as a cooling source for devices that dissipate heat with the help of a heat exchanger (e. g. double-walled grinding containers, cooled incubators, laboratory reactors, cooling coils).
• Easily accessible and easy-to-clean mesh filter (stainless steel) ensure a consistently high cooling capacity
• With low filling volume of one liter, RC 2 lite is able to reach low temperatures particularly fast.
• Max working volume of 2.5 liters enables a high number of external applications without refill of liquids.
• The filling level in the reservoir can be clearly observed through the large, illuminated sight glass.
• The powerful pressure and suction pump enables the simultanous operation of several small applications as well as external applications in open bath vessels in combination with a level controller.
• Natural, sustainable R290 refrigerant
• TUV Certified
• PID Temperature Control

Scope of delivery:

• RC 2 lite
• Olive for DN 8 hoses (2 pcs.)

Specifications

• Capacity (Metric): 1 to 3.5 L
• Cooling Capacity: 20°C/400W, 10°C/350W, 0°C/250W, -10°C/140W
• Flow Rate: 18 L/min.
• Temperature Range: -10°C to Room Temperature
• Type: Circulator
• Electrical Requirements: 115 V, 50/60 Hz , 250 W
