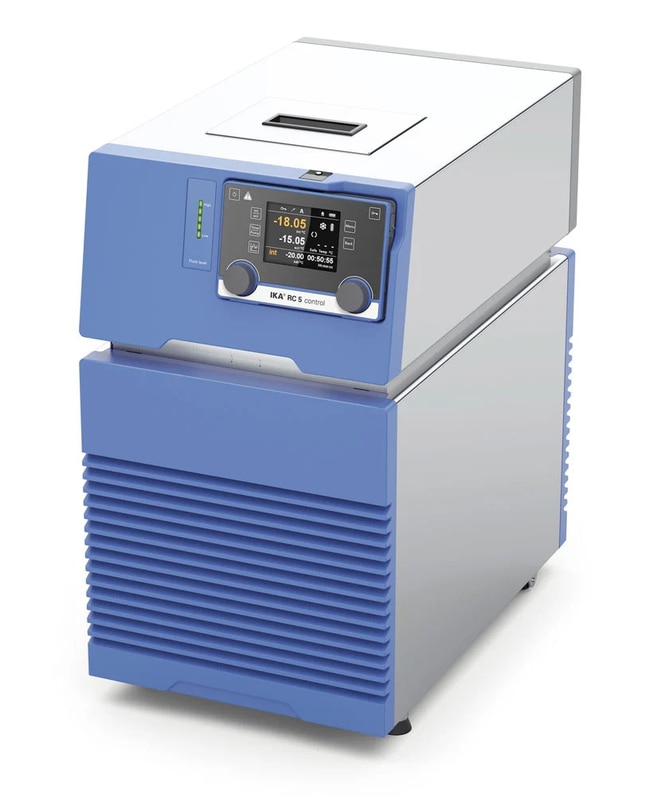

IKA™ RC 5 Control
SDP

Catalog No. 11116940 Shop All IKA Works Products
Change view
Click to view available options
Capacity (Metric):
7 L
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Capacity (Metric)
11-116-940 7 L
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 11-116-940 Supplier IKA™ Supplier No. 0020008504
Add to Cart
Add to Cart

missing translation for 'validMainframeMsg'

Description

Powerful recirculating chiller

  • Speed-controlled refrigeration system with 1400 W cooling capacity (at 20°C)
  • Natural thermofluid R290
  • Designed for cooling applications up to -30°C to ambient
  • Extended operating temperature range up to 80°C
  • Excellent temperature stability of about ± 0.1 K (at -10°C)
  • Speed-controlled pump made of PEEK: (0.6 bar, 31 L/min.)
  • Digital level indicator
  • Operating mode D (confirmation mode)
  • Signal if set point is reached
  • Timer/Counter
  • Degassing function
  • Connection socket for external PT 100 temperature sensor (Accessory: PT100.30, Lemo connector)
  • Connection of magnetic valves possible (Mulit IO)
  • Alarm contact (Multi IO)
  • Connector for standby contact input (Multi IO)
  • RS 232 and USB

Specifications

Capacity (Metric) 7 L
Condenser Type Air-cooled
Cooling Capacity 1400 W
Flow Rate 31 L/min.
Temperature Range -30°C to Ambient
Type Recirculating Chiller
Electrical Requirements 100/115 V
