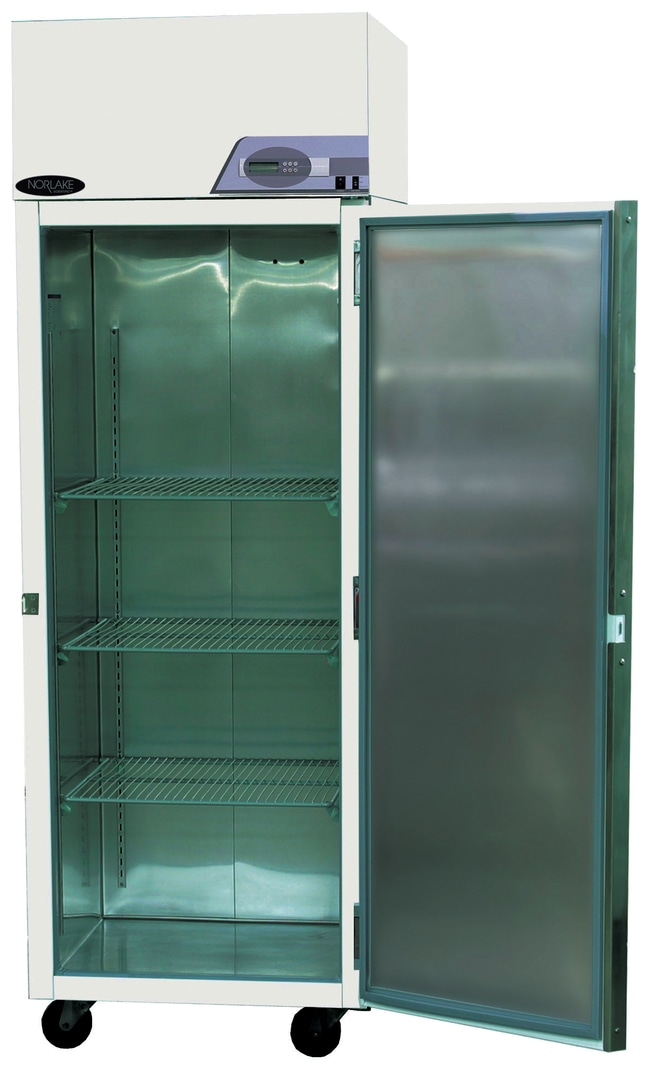

Corepoint Scientific™ Select™ Solid Door Laboratory and Pharmacy Refrigerator, 24 cu. ft.

Catalog No.	Plug Type	Electrical Requirements
22-650-716	Power inlet (IEC 60320) module	230 V 50 Hz
22-650-714	NEMA 5-15	115 V 60 Hz
22-650-715	NEMA 6-15	230 V 60 Hz

Catalog No. 22-650-716 Supplier Corepoint Scientific™ Supplier No. NSSR241WWW/5

Description

Advanced engineered design of the Select™ Solid Door Laboratory and Pharmacy Refrigerator incorporates latest in cabinet, refrigeration, temperature control and monitoring features to meet the demanding requirements for scientific and

Corepoint Scientific™ Select™ Laboratory and Pharmacy Freezers provide energy-efficient, convenient, safe and reliable performance for optimal storage temperature environments necessary for a wide range of life science, pharmacy, biological, medical, clinical, and industrial applications.

Temperature Control and Monitoring Features

• Digital 4 × 20 character LCD display microprocessor temperature controller
• Adjustable temperature from 2° to 10°C (factory preset at 4°C)
• Audible and visual Hi/Lo temperature alarm
• Remote alarm contacts
• Continuous product temperature display
• Three sensor system: two product, one air
• Door ajar alarm, audible and visual
• Password protection setpoints and factory settings
• 100-Event alarm logging
• Integrated Hi/Lo product temperature alarm test
• Digital calibration air and product
• Real-time clock with date and time display
• Door opening counter with 24 hr. automatic reset
• Adjustable alarm beep or constant on (ke pad selectable)
• Condenser/compressor, fan motor, defrost run time monitors
• Sensor failure alarm

Cabinet and Refrigeration Features

• Exterior cabinet front, sides and back painted white
• Exterior cabinet top and bottom galvanized steel
• Interior cabinet liner painted white
• Cabinet is foamed-in-place with CFC-free high-density polyurethane foam insulation
• Self-closing doors with hold open feature
• Key door lock(s) (two keys)
• Three coated wire shelves per door section
• Interior light, switch activated
• Air-cooled condensing unit
• Top-mounted forced air refrigeration system
• Automatic defrost and condensate evaporation

24.0 cu. ft. (600L) Models:

• Three shelves
• Four casters
• Interior D x W x H: 30 × 23.5 × 59 in. (76 × 59 × 149 cm)
• Exterior L x W x H: 34.875 × 27,5 × 79.625 in. (88 × 69 × 202 cm)
• Shipping weight: 365 lb. (165 kg)

Warranty and Services

24 months parts and labor, 5 year compressor (U.S. and Canada), 18 months parts (International)

Specifications

• Type: Laboratory and Pharmacy Refrigerator
• Capacity (English): 24 cu. ft.
• Capacity (Metric): 600 L
• Temperature Range: 2°C to 10°C
• Temperature Sensor: Microprocessor
• Refrigerant: R134a
• No. of Doors: 1
• Shelves: 3
• Cabinet Material: Stainless Steel
• Exterior Finish: Painted
• Insulation: CFC-free foamed-in HDPF
• Certifications/Compliance: cUL, UL
• Casters: Yes
• Ports: 1 in. dia. Sensor access
• Defrost: Automatic
• Monitoring Options: Alarm
• Dimensions (D x W x H) Interior: 30 x 23.5 x 59 in. (76 x 59 x 149 cm)
• Dimensions (L x W x H) Exterior: 34.88 x 27.5 x 79.6 in. (88 x 70 x 202 cm)
• Depth (English) Interior: 30 in.
• Depth (Metric) Interior: 76 cm
• Height (English) Exterior: 79.6 in.
• Height (English) Interior: 59 in.
• Height (Metric) Exterior: 202 cm
• Height (Metric) Interior: 149 cm
• Length (English) Exterior: 34.88 in.
• Length (Metric) Exterior: 88 cm
• Width (English) Exterior: 27.5 in.
• Width (English) Interior: 23.5 in.
• Width (Metric) Exterior: 70 cm
• Width (Metric) Interior: 59 cm
• Diameter (English): 6 in.
• Diameter (Metric): 15 cm
• Amperage: 8.6 A
• Plug Type: Power inlet (IEC 60320) module
• Voltage: 230 V
• Electrical Requirements: 230 V 50 Hz
• Frequency: 50 Hz
