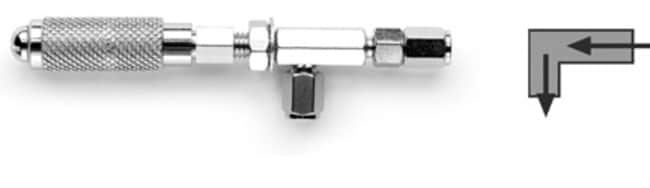

Trajan™ Brass Micro Control Valve
SDP

Catalog No. SG1236282 Shop All SGE Inc. Products
Change view
Click to view available options
Max. Pressure:
700 psi
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Max. Pressure
SG-1236282 700 psi
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. SG-1236282 Supplier Trajan™ Supplier No. 1236282

Description

Ideal for on-line microcontrol such as septum purge and non precision flow control. The valve accepts 1/16 in. OD flow lines.

  • Ideal for chromatography applications
  • May be used at elevated temperatures from high vacuum to medium pressure
  • Vacuum rated to a leak rate of 1E-05 cc/sec of helium

Specifications

Type L-Single Outlet Micro Control Valve
Style L Single Outlet
Connection Size (English) 0.06 in.
Material Brass
Connection Size (Metric) 0.15 cm
Length (Metric) Stem 100 mm
Valve Code BMCV-1
For Use With (Application) For on Line Microcontrol Such as Septum Purge and Non-Precision Flow Control
Max. Pressure 700 psi
Temperature (English) Maximum 212°F
Temperature (Metric) Max 300°C
