Stoelting™ Standard Manipulator Arm

Catalog No.	Model	Size
10-000-137	Standard, Left	3 axes
10-000-135	Right	2 axes
10-000-138	Left	2 axes
10-000-139	Add-on, Right	3 axes

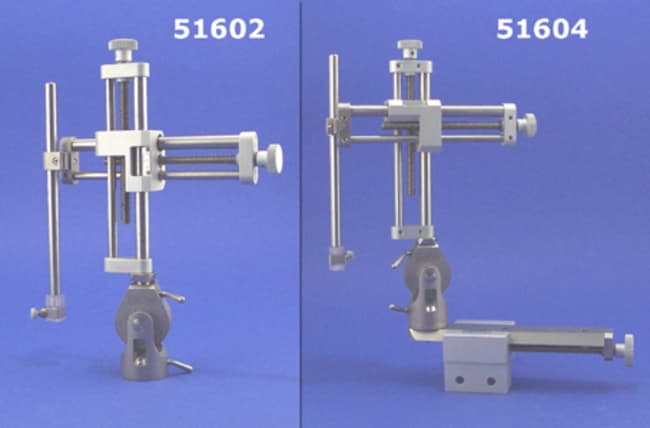

Catalog No. 10-000-137 Supplier Stoelting™ Supplier No. 51604

Description

Standard Manipulator Arm controls medio-lateral and vertical positioning via lead screws, and antero-posterior movement via dovetail slide movement, with 80 mm of travel possible in each direction.

• Replacement or add-on manipulator arms for existing stereotaxic
• Universal joint allows the investigator to change the angle of the probe up to 90° in either the antero-posterior or medio-lateral planes
• Locking mechanism will hold any angle position without slippage
• Provides an absolute lock at 90° vertical
• Easy-to-Read Scales

  • Numerals on the scales are larger
  • Scale lines are laser engraved to allow finest possible permanent marking of scales on all 3 axes
  • Precise alignment with facing vernier scales gives accurate resolution to 0.1 mm
• Smooth Movements

  • Exclusive, triple lead screws on these manipulators allow the fastest positioning possible
  • Consistent with lining up the scales easily at a given coordinate
• Swing joint allows the investigator to conveniently swing the manipulator arm and probe out of the way for performing a procedure – then reliably return the probe to the same point
• Convenince for Electrophysiology - Integral brass bushings in the manipulator arm allow grounding directly to the closest metal on the manipulator arm—even the probe holder.

Specifications

• For Use With (Application): Neuroscience
• Size: 3 axes
• Model: Standard, Left
