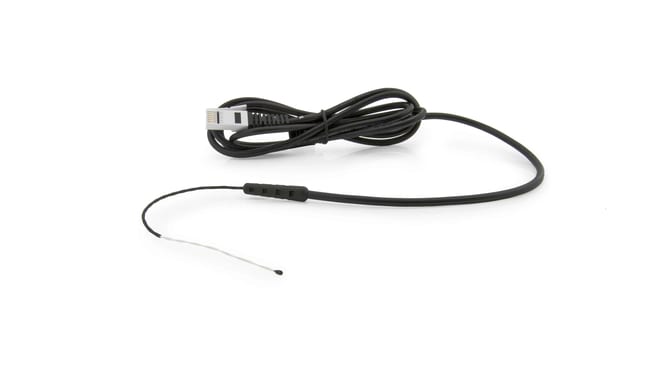

Vernier™ Surface Temperature Sensor

Catalog No.	Temperature Range (Metric)
S16259ND	-25°C to +125°C

Catalog No. S16259ND Supplier Vernier™ Supplier No. STSBTA

Description

Includes

Vernier Surface Temperature Sensor

Requires

Requires an interface and software, sold separately

The Surface Temperature Sensor is designed for use in situations in which low thermal mass or flexibility is required, or for a skin temperature measurement.

Temperature range: –25 to 125°C (–13 to 257°F) Maximum temperature that the sensor can tolerate without damage: 150°C Typical Resolution: 0.08°C (–25 to 0°C) 0.03°C (0 to 40°C) 0.1°C (40 to 100°C) 0.25°C (100 to 125°C) Temperature sensor: 20 kΩ NTC Thermistor Accuracy: ±0.2°C at 0°C, ±0.5°C at 100°C Response time (time for 90% change in reading) 50 seconds (in still air) 20 seconds (in moving air) Probe dimensions: Probe length (handle plus body) 15.5 cm Important: For use in air and water only. For temperature measurements in harsher environments, we recommend the Stainless Steel Temperature Sensor.

Warranty and Services

5-year limited warranty

Specifications

• Grade: K-8, High School, College
• Interface: Required
• Warranty: 5 Year Limited
• For Use With (Application): Educational use only
• Accuracy: ±0.2°C at 0°C, ±0.5°C at 100°C
• Resolution: 0.08°C (-25 to 0°C), 0.03°C (0 to 40°C), 0.1°C (40 to 100°C), 0.25°C (100 to 125°C)
• Response Time: 50 seconds (in still air), 20 seconds (in moving air)
• Temperature Range (Metric): -25°C to +125°C
• Length (Metric): 15.5 cm
