United Scientific™ Thermal Conductivity Bars

Description

Thermal Conductivity Bars quickly show heat transfer rates.

• This simple and ingenious device quickly and graphically shows students how different metals conduct heat at different rates.

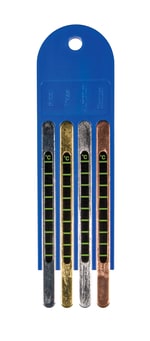

• It consists of four identically sized bars of common metals - steel, brass, aluminum, and copper - mounted parallel to one another in a plastic support.
• Attached to each bar is a liquid crystal thermometer.

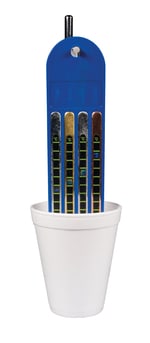

• When the ends of the bars are immersed in hot water, the thermometers quickly show the progress of heat along each bar.
• Students can measure the time for the tops of the bars to reach the top display temperature (42°C) and discover how well each metal conducts heat.
• Height: 20 cm, Width: 5.5 cm, Weight: 145 g.
• Bar dimensions (each bar): Length: 13.5 cm, Width: 0.9 cm, Thickness: 0.5 cm.
• Display temperature range: 35°C - 42°C x 1°C.

Specifications

• Product Type: Conductivity Bar
• Grade: 5+
• Height (English): 8 in.
• Includes: Four identically-sized bars of common metals - steel, brass, aluminum, and copper - mounted parallel to one another in a plastic support.
• Weight (English): 5 oz.
• Weight (Metric): 145 g
• Class Size: 1 Lab Group
