PureAire Monitoring Systems Trace Oxygen Analyzer
SDP

Catalog No. 18222013
Change view
Click to view available options
Detection Limits:
0 to 1000 ppm
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Detection Limits
18-222-013 0 to 1000 ppm
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 18-222-013 Supplier PureAire Monitoring Systems Supplier No. 99097
Only null left
Add to Cart
Add to Cart
Request a Quote

Description

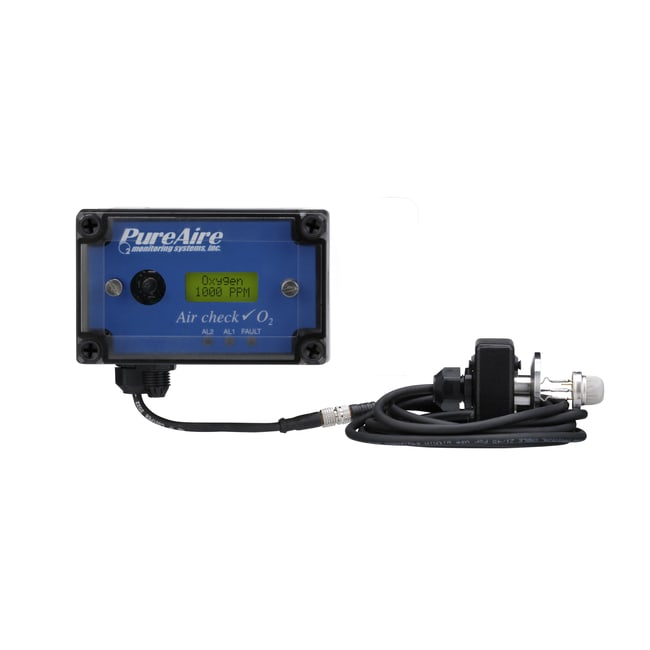

PureAire Monitoring Systems Trace Oxygen Analyzer ideal for low-oxygen facilities that require continuous monitoring

  • For use in a vacuum environment, 3D printer, nitrogen generator, or semiconductor tool using nitrogen, argon, or cryogenics.
  • The robust zirconium sensor is connected via the KF25 flange.
  • Sensor is connected to the analyser using a 3 meter cable for easy connection.
  • Built-in audible alarm 90 db with 2 alarm setpoints
  • Wall mounting brackets
  • 2 year warranty

Specifications

Detectable Analytes Oxygen
Detection Limits 0 to 1000 ppm
Temperature (Metric) Operating -40°C to +50°C
Accuracy ±50 ppm
Certifications/Compliance CE Marked, UL/CUL Approved
Connections KF25 Flange
Depth (English) 3.3 in.
Depth (Metric) 83 mm
Description For use in a vacuum
Electrical Requirements 250 mA
Enclosure Material Polycarbonate
Height (English) 5.5 in.
Height (Metric) 140 mm
Outputs 4-20 mA
Sample Orifice Details KF25 Fitting
Voltage 24 V
Weight (English) 2 lb.
Weight (Metric) 0.9 kg
Width (English) 5 in.
Width (Metric) 127 mm
