PureAire Monitoring Systems Universal Gas Detector
SDP

Catalog No. 18222009
Change view
Click to view available options
For Use With (Equipment):
PureAire Toxic or Corrosive Gas Sensors
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. For Use With (Equipment)
18-222-009 PureAire Toxic or Corrosive Gas Sensors
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 18-222-009 Supplier PureAire Monitoring Systems Supplier No. 99030
Only null left
Add to Cart
Add to Cart

Description

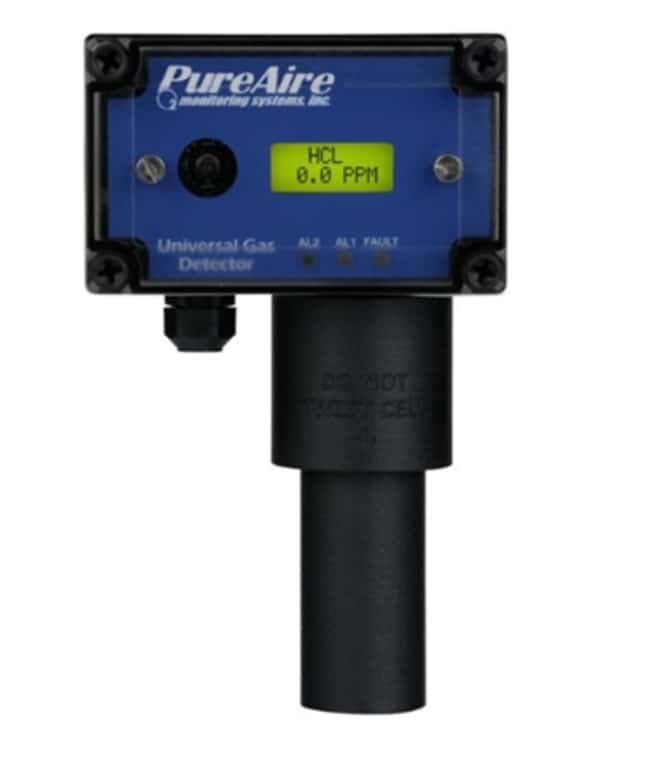

PureAire Monitoring Systems Universal Gas Detector constantly monitors toxic, and corrosive gases

  • This compact gas monitor is ideal for protecting workers from toxic and corrosive gas exposures in the workplace.
  • The transmitter is designed to be connected to a dedicated, renewable gas sensor which is programmed for a specific type of gas in parts-per-million (ppm)
  • Plug & play sensor sets the transmitter gas & measurement range
  • Dual-level user-adjustable alarm relays
  • Built-in horn & visual alarm LEDs
  • Electronics continuously check sensor & systems status
  • Low-cost, long-life renewable sensor
  • Quick, easy sensor calibration
  • Optional remote cable for monitoring up to 30 feet from the transmitter
  • Connects to PLC or SCADA controller
  • 24V DC Power supply included

Specifications

Accuracy ±10% of Full Scale
Certifications/Compliance UL
Description Renewable Electrochemical Self-Checking Sensor with Built-in Microprocessor
Dimensions (L x W x H) 3.3 x 5.5 x 10.5 in.
For Use With (Equipment) PureAire Toxic or Corrosive Gas Sensors
Type Fixed Gas Detection Monitor
Display Type LED
For Use With (Application) Laboratories, Hospitals, Refrigeration, Pharmaceutical Manufacturers, R&D
Outputs 4-20 mA
Temperature Range (English) -25°F to +122°F
Temperature Range (Metric) -32 to +50°C
Voltage 24 V
Weight (English) 1.2 lb.
Weight (Metric) 0.5 kg
