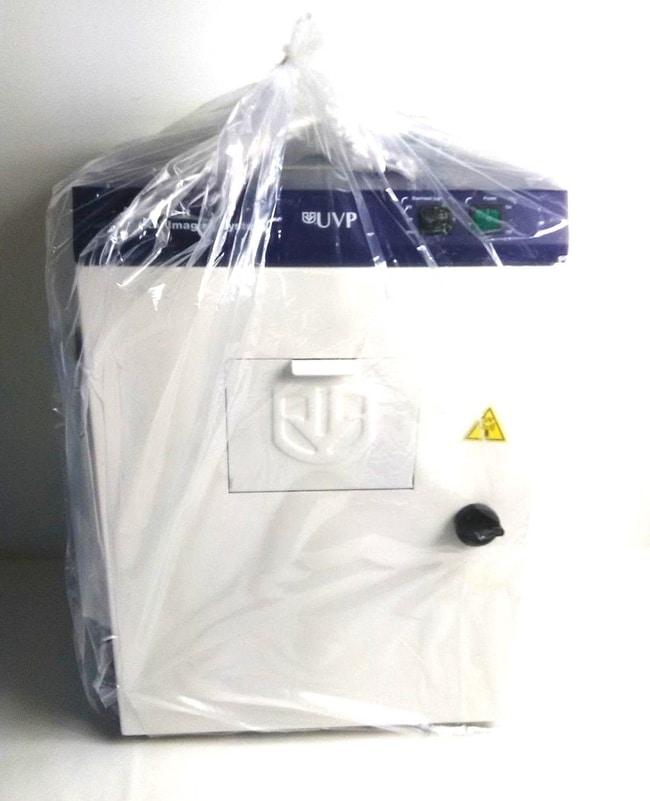

Analytik Jena UVP MultiDoc-It™ Imaging Systems

Catalog No. UVP97020201 Shop All UVP Inc. Products
Change view
Click to view available options
Wavelength:
254/365nm
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Wavelength
UVP97020201 254/365nm
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. UVP97020201 Supplier Analytik Jena Supplier No. 97020201
Only null left
Add to Cart
Add to Cart
Request a Quote

Description

Requires

Computer for imaging and camera control. USB port required for camera connection

Combines digital color camera, darkroom enclosure and transilluminator for digital imaging of gels, plates, and membranes in multiple-user laboratories

    Uses your existing computer running capture software on supplied CD
    High resolution images with low-light capability
    CCD Camera and Capture Software
    Software enables acquisition, camera control, enhancement, annotation and archiving of digital image; compatible with Windows™ 98SE, ME, XP, 2000
    DigiCam 110 digital color camera, 5.1 megapixel resolution, 4:1 zoom lens; max. Field of View, 29.5 x 22.2cm
    Apertures from f/2.8 to f/8.0; automatic or manual focus and exposure; 1/4000 to 16 seconds exposure times
    Focusing ranges: normal, 8 to 31 in. (0.2m to 0.8m); close-up, 1 to 8 in. (0.03m to 0.2m)
    UVP filter and diopter included
    Resolution settings from 640 x 480 to 2592 x 1944; interpolated print resolution to 3264 x 2448
    High or low image compression with multiple file formats: jpeg, bmp, tif, gif, tga, png
    USB interface; operates on Li-Ion battery; with charger and AC power supply
    Additional functions available when software is not in use: multi-mode exposure controls, color LCD monitor, variable shutter speeds, flash controls, Smart Memory Card, utility and photo software and more
    Camera measures 4 3/8 x 3 x 2 3/4 in. (109.2 x 76.2 x 68.6mm); weight, 11 oz. (307g)
    Darkroom Sturdy enclosure provides a darkroom environment and protects the camera
    Full-access door; built-in overhead white light
    Safety interlock turns UV off when door is open
    Viewer window for inspecting gels without opening the door

Specifications

Voltage 115V
Transilluminator Two Overhead UVGL-25 UV Lamps (no transilluminator)
Wavelength 254/365nm
For Use With (Application) Thin Layer Chromatography (TLC)
Product Type MultiDoc-It Imaging System
