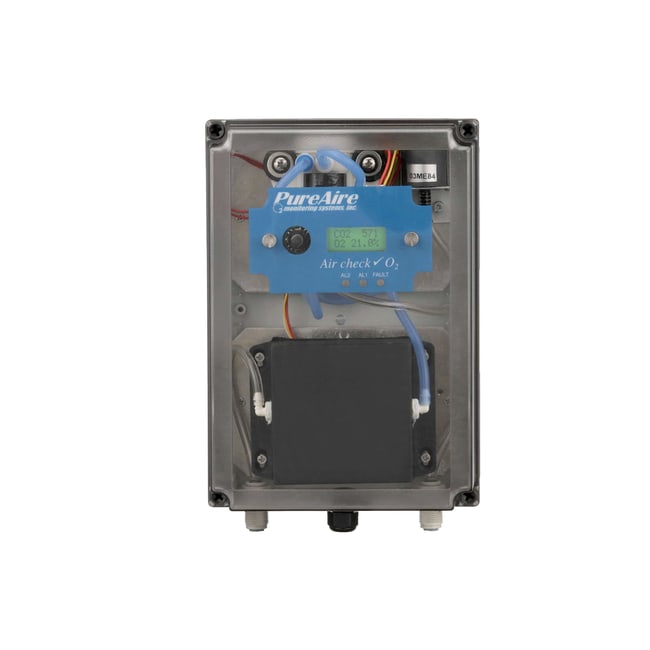

PureAire Monitoring Systems Water-Resistant O2/CO2 Monitor
SDP

Catalog No. 18222018
Change view
Click to view available options
Components Measured:
Oxygen, Carbon Dioxide
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Components Measured
18-222-018 Oxygen, Carbon Dioxide
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 18-222-018 Supplier PureAire Monitoring Systems Supplier No. 99127

Description

PureAire Monitoring Systems Water-Resistant O2/CO2 Monitor designed for confined spaces that require daily wash-downs

  • No calibration required for oxygen, self-calibrating CO2 sensor
  • Built-in audible horn, visual LED alarm indicators
  • Alarm level 1 and 2 for O2 and CO2
  • No drift due to environmental or temperature changes
  • No maintenance zirconium oxide O2 cell and long-life CO2 sensor
  • Built-in flow sample pump for remote sampling up to 100 feet
  • Built-in user-adjustable alarms and relays
  • Durable, non-depleting, zirconium oxide sensor cells, and NDIR cells will last up to 10+ years in a normal environment
  • Secure the unit on the wall 3-5 feet from the gas source, and plug it in.
  • Levels are displayed clearly on the screen for easy access and visibility.

Specifications

Accuracy 1% of Full Scale
Certifications/Compliance IP67 Water-Resistant Enclosure
Depth (English) 5 in.
Depth (Metric) 127 mm
Description Polycarbonate Enclosure
Detector Type Water-resistant Oxygen/CO2 Gas Monitor
Components Measured Oxygen, Carbon Dioxide
Type Fixed Gas Detection Monitor
Display Type 3/4 in. Digital
For Use With (Application) Inert Gas Monitoring
Height (English) 6 in.
Height (Metric) 152.4 mm
Humidity Range 0 to 95% RH
Measurement Range 0 to 25% O2 and 0 to 10,000 ppm CO2
Outputs 4-20 mA
Temperature Range (English) 40°F to 122°F
Temperature Range (Metric) -40 to +50°C
Voltage 24 V
Warranty 2 Year
Weight (English) 4 lb.
Weight (Metric) 1.8 kg
Width (English) 7.3 in.
Width (Metric) 184.2 mm
