Reaction Kettles
Chemglass Life Sciences 100mL Flask, Reaction, 14/20 Outer Joint, Valve, Airfree, Schlenk
100mL Flask, Reaction, 14/20 Outer Joint, Valve, Airfree, Schlenk. Round bottom single neck flask having a standard taper outer joint. Available with a choice of a 2mm high vacuum glass stopcock having a Stainless Steel constant pressure retaining device or a 0-4mm Chem-Cap Airfree inlet valve.
Chemglass Life Sciences 50mL 2-Neck Flask, Reaction, 14/20 Joint Size, Valve, Airfree, Schlenk
50mL 2-Neck Flask, Reaction, 14/20 Joint Size, Valve, Airfree, Schlenk. Round bottom 2-neck flask having standard taper outer joints, both being of the same size. Available with a choice of a 2mm high vacuum glass stopcock having a Stainless Steel constant pressure retaining device or a 0-4mm Chem-Cap Airfree inlet valve. Side neck can be fitted with a CG-3022 septum stopper for sampling or cannula transfer.
Chemglass Life Sciences 100mL 2-Neck Flask, Reaction, 24/40 Joint Size, Valve, Airfree, Schlenk
100mL 2-Neck Flask, Reaction, 24/40 Joint Size, Valve, Airfree, Schlenk. Round bottom 2-neck flask having standard taper outer joints, both being of the same size. Available with a choice of a 2mm high vacuum glass stopcock having a Stainless Steel constant pressure retaining device or a 0-4mm Chem-Cap Airfree inlet valve. Side neck can be fitted with a CG-3022 septum stopper for sampling or cannula transfer.
Chemglass Life Sciences 75mL Heavy Wall Pressure Vessel, Round Bottom, #15 Internal Thread, Vessel Only, 52mm O.D. x 102mm Length, Bushing Size/15
75mL Heavy Wall Pressure Vessel, Round Bottom, #15 Internal Thread, Vessel Only, 52mm O.D. x 102mm Length, Bushing Size/15. Heavy wall pressure vessels have an internal thread for use with PTFE bushings as pressure seals. The design allows hand tightening/loosening for easy access into the vessel. O-ring is positioned on the bushing above the thread for improved sealing. Supplied complete with vessel, PTFE bushing & Viton o-ring. Optional Perfluoro o-ring has the chemical resistance & service temperature range similar to Kalrez 4079. See CG-362, CG-364, and CG-366 for optional PTFE Bushings.IMPORTANT NOTICE: ALL CHEMGLASS PRESSURE VESSELS ARE TESTED AT 150 PSI, OR APPROX TWO AND ONE-HALF TIMES THEIR RECOMMENDED WORKING PRESSURE. HOWEVER, CHEMGLASS DOES NOT GUARANTEE THE VESSEL FROM BREAKING UNDER PRESSURE, DUE TO THE NATURE OF MATERIAL AND CONDITIONS BEYOND OUR CONTROL. CHEMGLASS RECOMMENDS THE USE OF SAFETY SHIELDS AND/OR OTHER SAFETY EQUIPMENT.

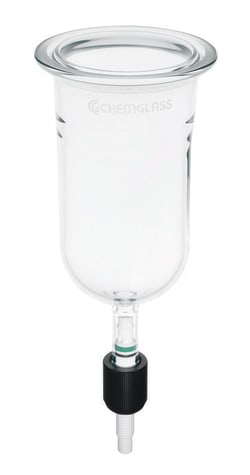

Chemglass Life Sciences 500mL Reaction Vessel, Unjacketed, 100mm Schott O-Ring Flange, 6mm Chem-Drain Valve
500mL Reaction Vessel, Unjacketed, 100mm Schott O-Ring Flange, 6mm Chem-Drain Valve. Constructed with a flange having a groove formed in the sealing surface of the flange. Flange is ground to permit a greased seal with any of the lids CG1940 through CG-1946. For clamp see CG141 or CG141T. For o-ring see CG147.The Chem-Drain valve incorporates a PTFE plunger that allows the contents of the flask to drain directly through the bore of the plunger. When closed, the tip of the PTFE plug seals into the lower radius of the flask. This feature permits total mixing and drainage of the contents of the flask. When open, the contents of the flask drain through three openings into the main bore of the plug. Lower portion of the plunger has a 1/2" section on the 6mm size and 18mm section on the 12mm size for attachment of flexible tubing to allow material to be transferred into a receiving vessel. The 6mm size will permit drainage of solids having a diameter of 1.5mm.

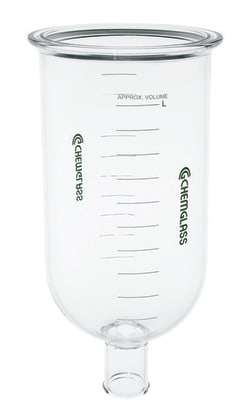

Chemglass Life Sciences Reaction vessel, cylindrical, unjacketed, Capacity Liters: 10, Flange I.D. (mm): 200, Valve Style: 2" BP Detachable, Overall Height mm (in.): 420 (16.5), Height to Width Ratio: 1.9:1
Reaction vessel, cylindrical, unjacketed, Capacity Liters: 10, Flange I.D. (mm): 200, Valve Style: 2" BP Detachable, Overall Height mm (in.): 420 (16.5), Height to Width Ratio: 1.9:1. Unjacketed large scale process reaction vessels. The 10, 15, and 20L vessels have a 200mm ID flange with an o-ring groove formed in the surface of the flange. The 30L and 50L have a 300mm ID flat ground flange. The 10, 15, and 20L are available with a choice of a 2” beaded pipe drain that is detachable, or the 0-20mm valve with 3/4” sidearm that is permanently sealed. These flush bottom (zero dead space) valves are designed to prevent solids from collecting in the bottom of the vessel. Vessels equipped with the 0-20mm sealed on valve are supplied complete with a TFE plug having Perfluoro chemically resistant o-rings. Vessels are serial numbered and have a graduation scale on both sides showing the approximate volume.PLEASE NOTE: VALVE, BEADED PIPE COUPLINGS, AND ADAPTERS MUST BE PURCHASED SEPARATELY.
Chemglass Life Sciences 1000mL Reaction Vessel, Jacketed, 100mm Schott O-Ring Flange, GL-14 Inlet/Outlet, CG-911-A-10 Drain Valve
1000mL Reaction Vessel, Jacketed, 100mm Schott O-Ring Flange, GL-14 Inlet/Outlet, CG-911-A-10 Drain Valve. Similar to CG-1930, but with morton indentations to increase agitation during stirring. Supplied complete with two polypropylene hose connections and two screw caps. For clamp see CG-141 or CG-141-T. For o-ring see CG-147.Please Note: Morton Style Reactors/Flasks Not Suitable For Vacuum
Chemglass Life Sciences Process Reaction Vessel, Jacketed, Large Scale, 20L, Flange I.D.: 200Mm, 0-20 Sealed Valve, Overall Height: 675Mm, H:W Ratio: 2.2:1, I/O Size: 1"" Bp, Jacket Capacity: 8L
Process reaction vessels, jacketed, Capacity Liters: 20, Flange I.D. (mm): 200, Valve Style: 0-20 Sealed, Overall Height mm (in.): 675 (26.6), Height to Width Ratio: 2.2:1, Inlet/Outlet Size: 1"""" BP, Jacket Capacity Liters: 8. Jacketed large scale process reaction vessels. The 10, 15, and 20L vessels have a 200mm ID flange with an o-ring groove formed in the surface of the flange. The inlet/outlet of the vessels are beaded pipe fittings for use with the CG-1964 and CG-1969-A beaded pipe adapters. The 10, 15 and 20L are available with a choice of a 2” beaded pipe valve that is detachable or the 0-20mm valve with 3/4” sidearm that is permanently sealed. These flush bottom (zero dead space) valves are designed to prevent solids from collecting in the bottom of the vessel. Vessels equipped with the 0-20mm sealed on valve are supplied complete with a TFE plug having Perfluoro chemically resistant o-rings.PLEASE NOTE: VALVE, BEADED PIPE COUPLINGS, AND ADAPTERS MUST BE PURCHASED SEPARATELY.
